10PCS Anderson Style Plug 50A 12V 24V DC Connectors for Solar 4WD Battery Systems

Ensure a secure and efficient connection for your DC power setup with this 10-pack of Anderson style 50A plug connectors. Built to handle 12V or 24V DC systems, these connectors are ideal for solar panel installations, dual battery setups, caravans, 4WD vehicles, and portable power equipment.

Each plug features a genderless design, enabling easy connection and disconnection without worrying about polarity. The robust housing is made from impact-resistant material, while the silver-plated copper terminals provide strong conductivity and low contact resistance, ensuring a stable power flow.

Whether you're wiring a trailer plug, setting up a fridge in the ute tray, or upgrading your off-grid system, these DC plug connectors offer rugged durability and ease of use in demanding environments.

Features

• Anderson style 50A connectors: Designed with a symmetrical housing that allows plugs of the same colour to connect with each other.

• Colour-coded compatibility: Only grey connectors are interconnectable with other grey Anderson-style plugs of the same type.

• Strong conductivity: Silver-plated copper terminals provide low resistance and secure connection.

• Durable outer shell: Built with a rugged casing for long-term use in 12V or 24V DC setups.

• Versatile applications: Suitable for solar setups, dual battery systems, caravans, 4WDs, and portable 12V power accessories.

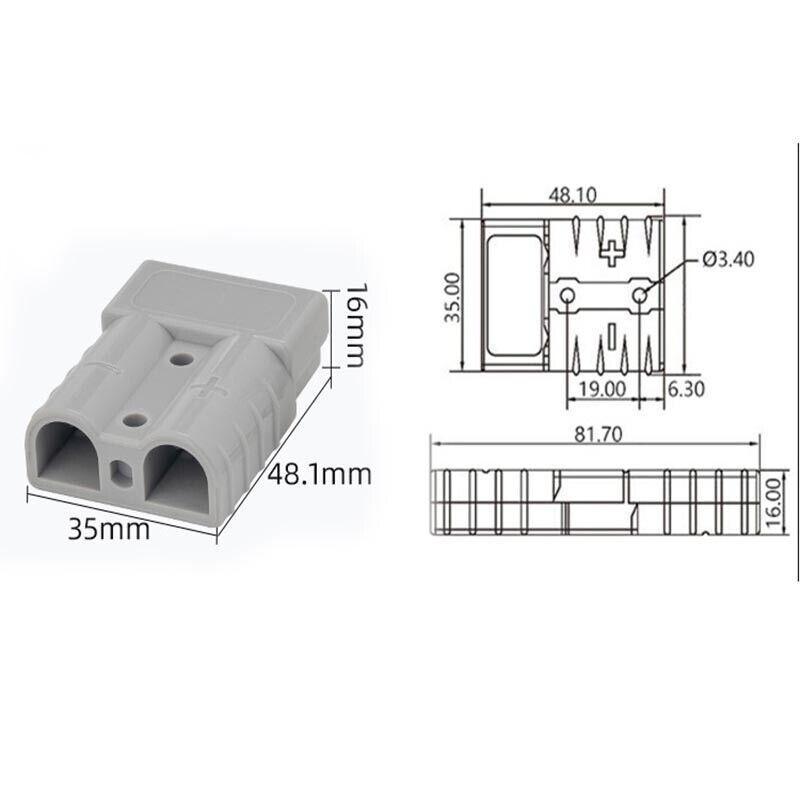

Specifications

• Colour: Grey

• Current Rating: 50A

• Voltage Support: 12V / 24V DC systems

• Max Voltage Capacity: Up to 600V DC (as per connector specification)

• Operating Temperature: -20°C to +105°C

• Cable Size Compatibility: 6AWG / up to 13.3 mm2

• Connection Style: Symmetrical housing (same colour required for compatibility)

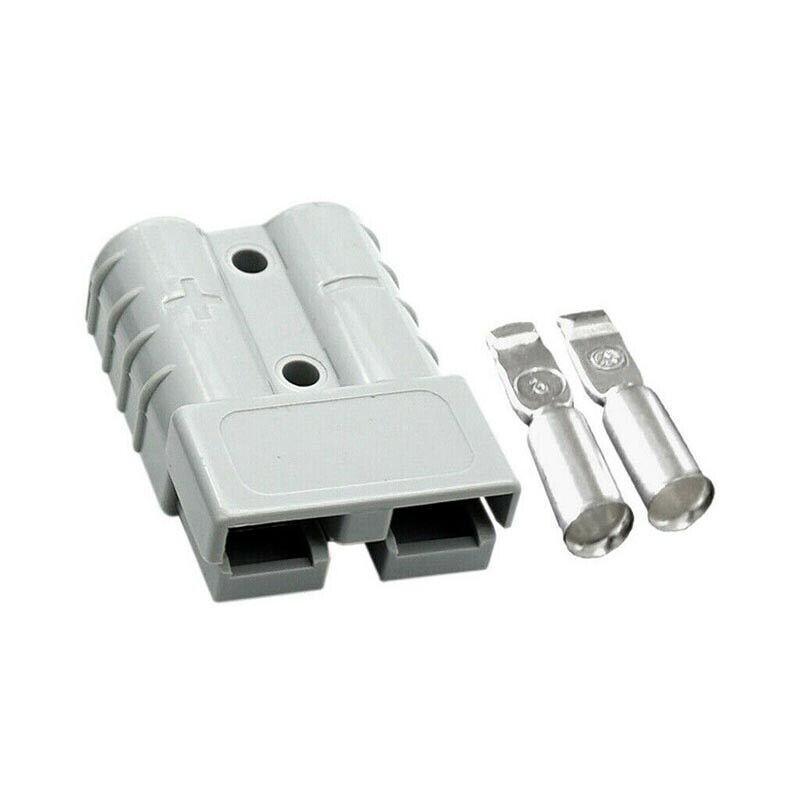

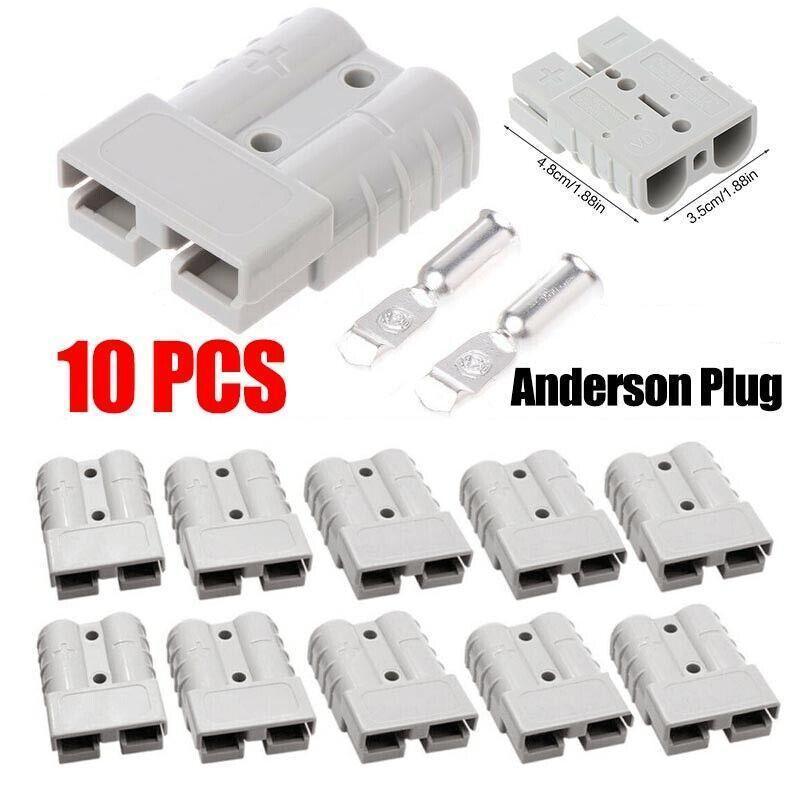

Package Includes

• 10 × Anderson Style Plugs

• 20 × Silver-Plated Terminals

Notes

• Please allow minor size variation due to manual measurement.

• Colour may differ slightly due to lighting or display differences.

• These plugs are not waterproof and should be housed appropriately if used outdoors.
