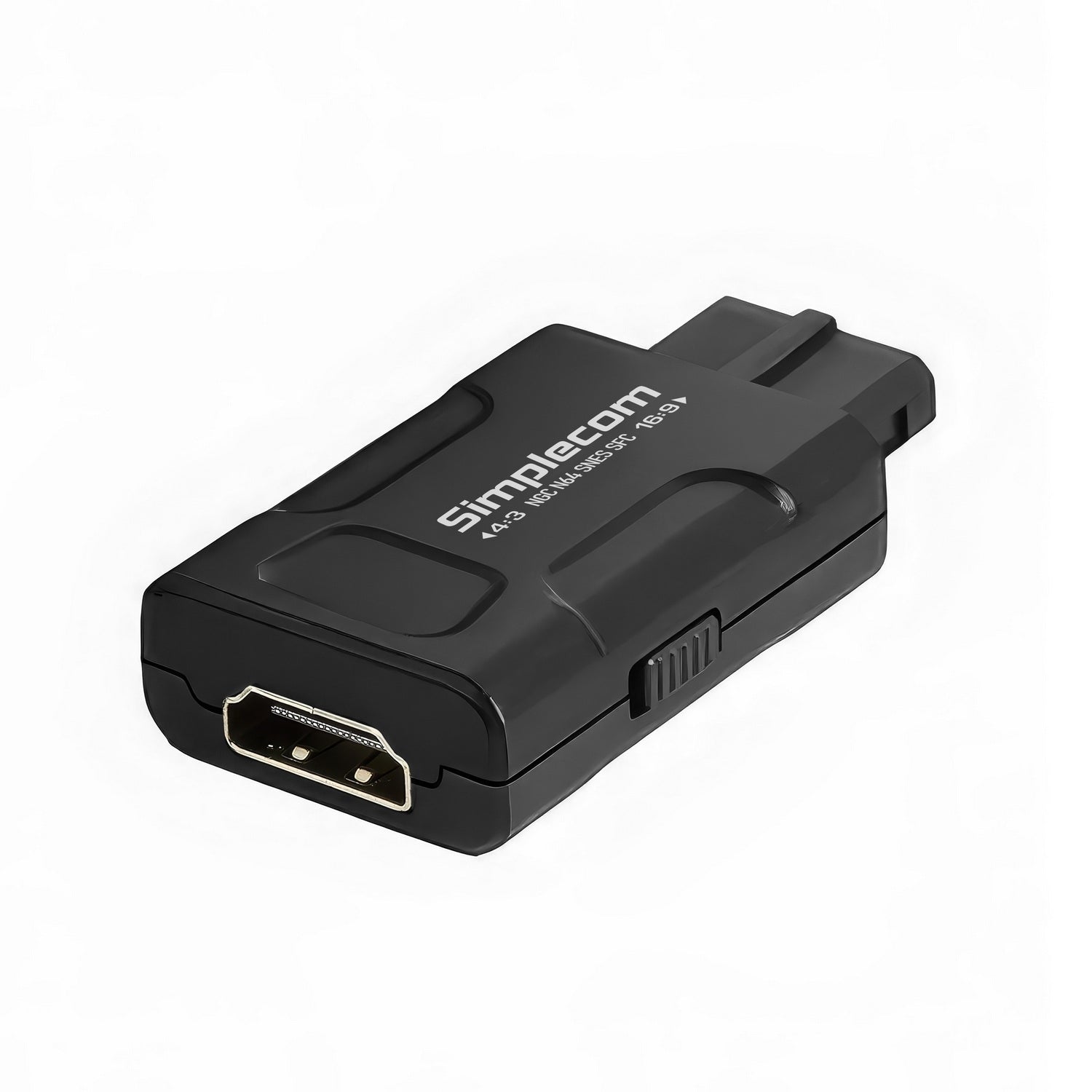

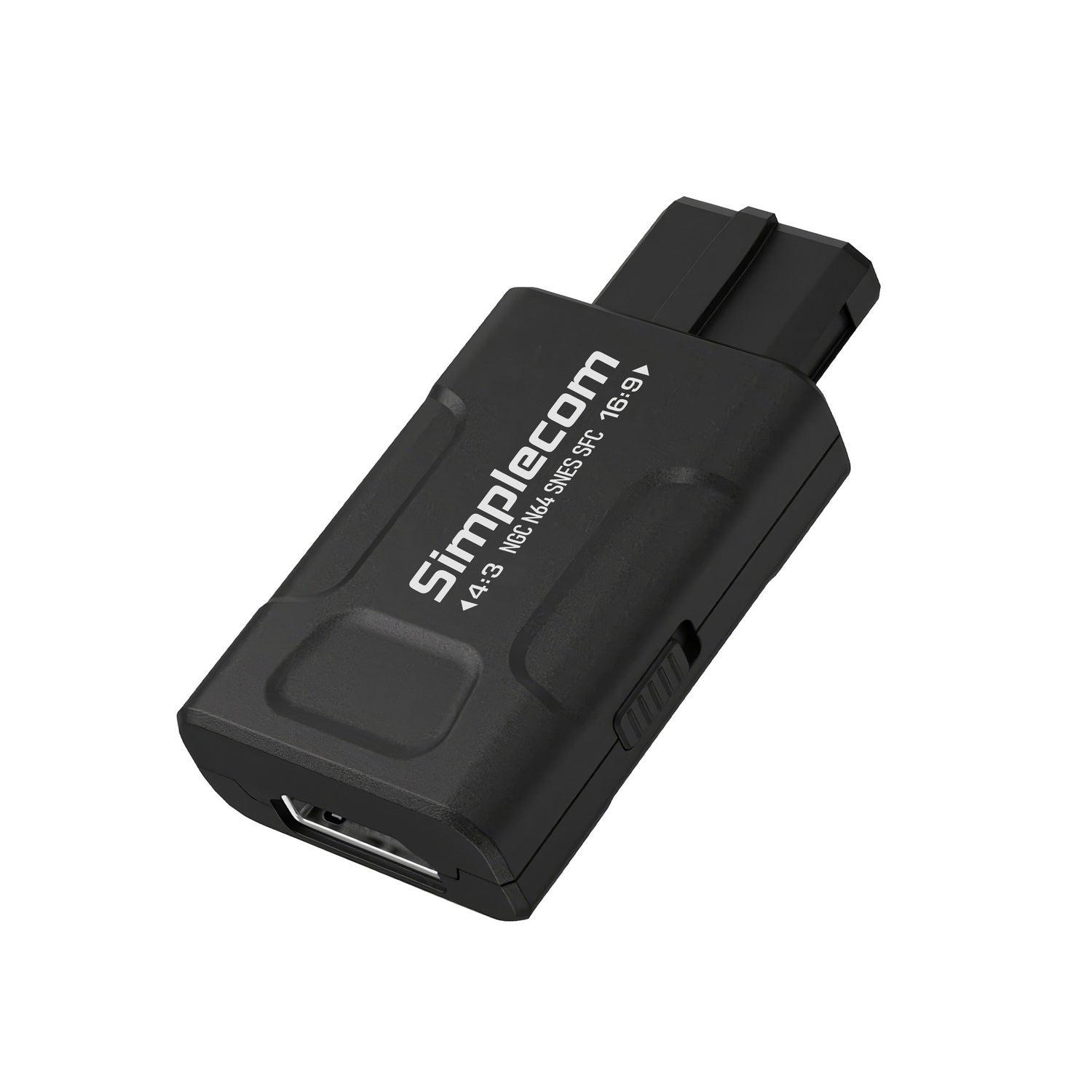

Simplecom CM461v2 HDMI Adapter Composite AV and S-Video to HDMI Converter for Nintendo NGC N64 SNES SFC

Simplecom CM461v2 HDMI Adapter Composite AV and S-Video to HDMI Converter for Nintendo NGC N64 SNES SFC

Bring your classic consoles back to life with this high-quality HDMI converter. Designed for classic systems including N64, GameCube, Super NES, and SFC, it effortlessly converts analog signals into digital HDMI output.

The converter supports both Composite AV and S-Video signals, automatically switching to S-Video for improved picture quality whenever available. Its compatible with both NTSC and PAL consoles for a hassle-free setup.

With a built-in switch to toggle between 4:3 and 16:9 aspect ratios, you can enjoy games in their original format or in full-screen mode. Compact, lightweight, and completely plug-and-play with no external power required, this converter is easy to set up and use, perfect for reliving your favorite retro titles on modern displays.

Features

• Compatible with N64, GameCube, Super NES, and SFC consoles
• Converts and upscales console analog signal to digital HDMI output
• Supports Composite AV and S-Video signals from the console
• Automatically switches to S-Video mode for enhanced quality when available
• Supports both NTSC and PAL consoles
• Delivers both video and audio through a single HDMI cable

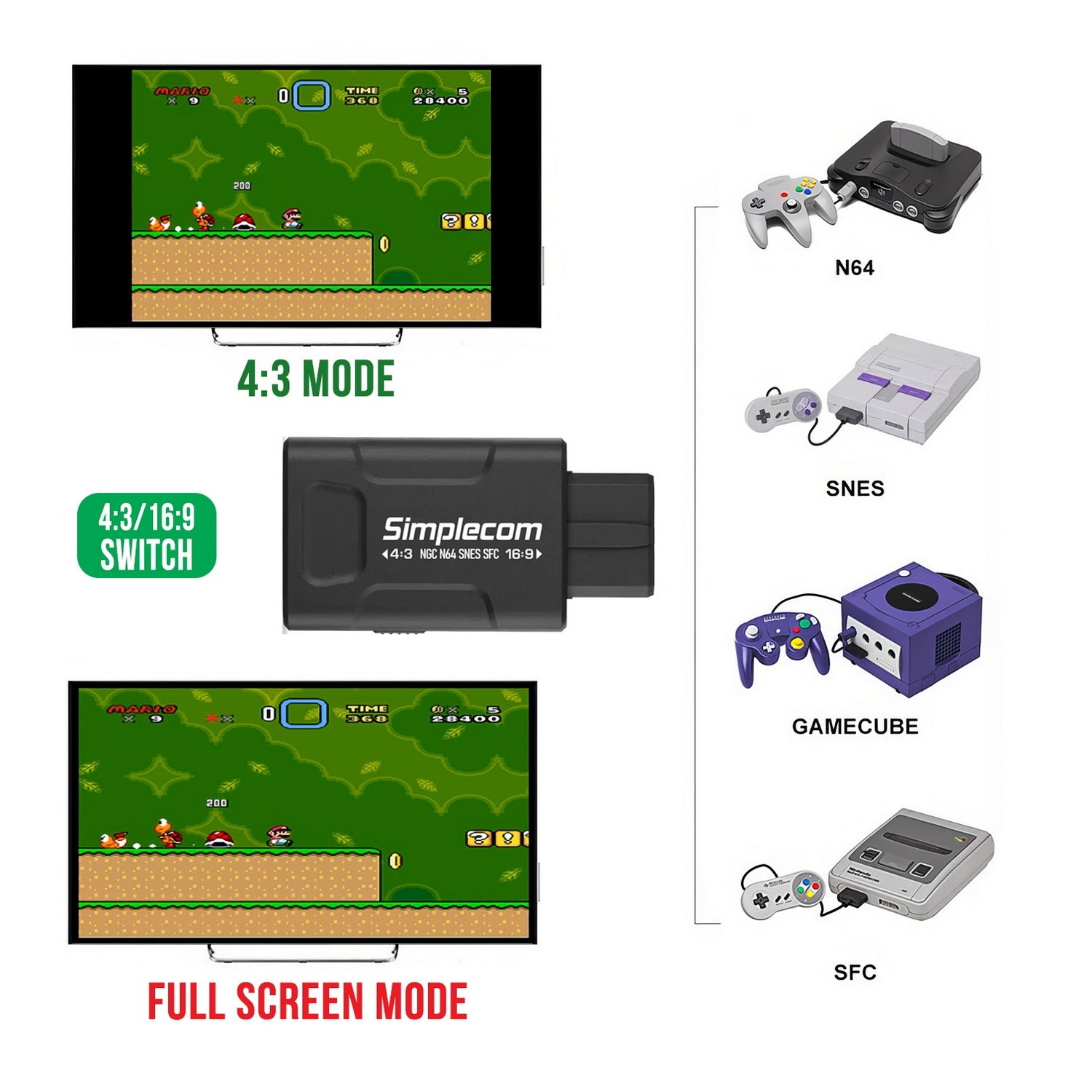

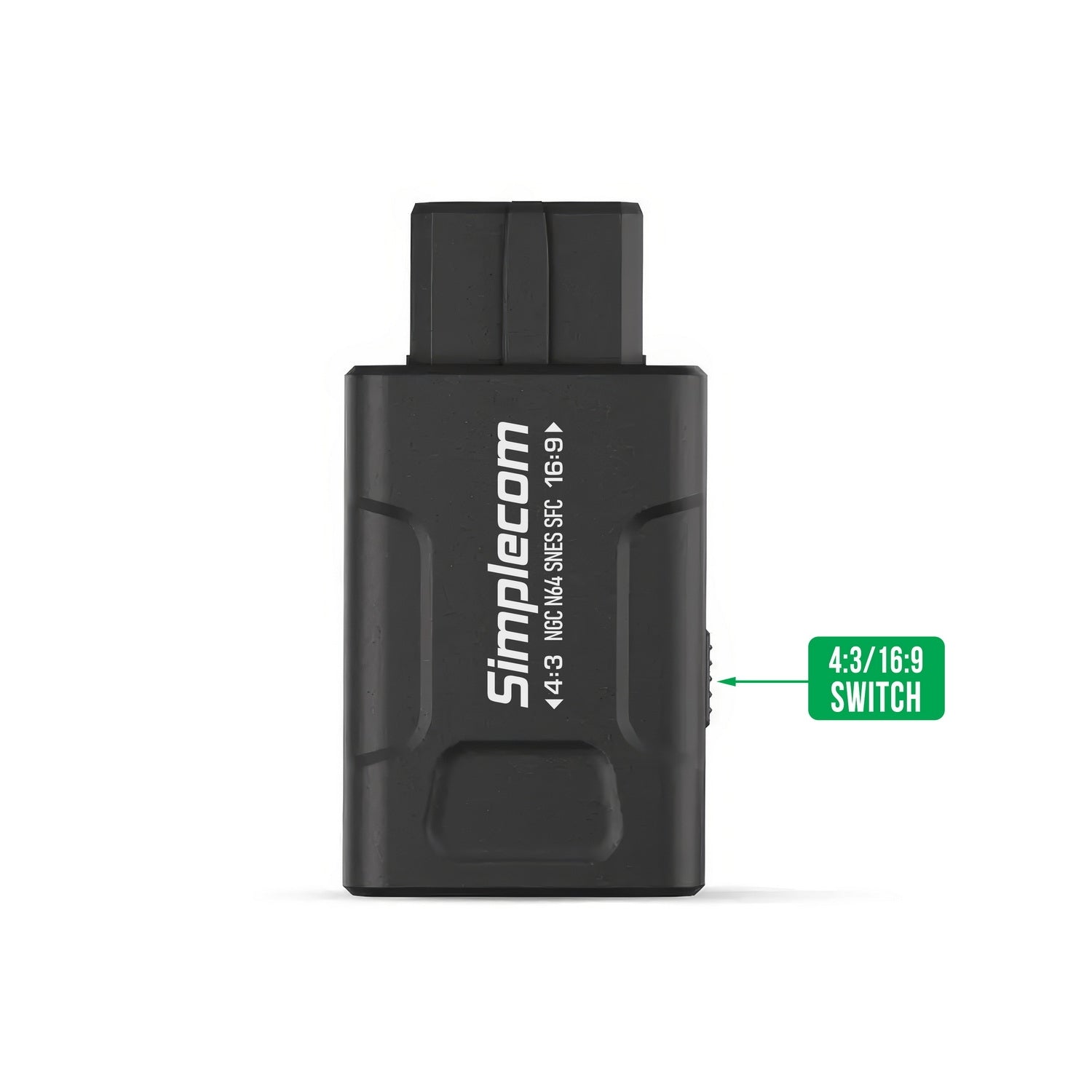

• Easily select between 4:3 and 16:9 aspect ratios with a switch
• Plug and play, no external power required
• Compact and lightweight design, easy to set up

Specifications

• Model: CM461v2
• Compatible Consoles: N64 / NGC / SNES / SFC
• Supported Analog Signals: AV, S-Video
• Output Interface: HDMI
• Analog Video Standards: PAL, NTSC
• HDMI Output Resolution: 720p (16:9), 1080p (4:3)
• Dimensions: 57 29 13mm (WDH)
• Weight: 14g

Important Notes:

• The adapter is powered directly by the console, no external power supply is required.
• This HDMI adapter supports only analog video signals (AV, S-Video). RGB signals are not supported.
• Not all consoles support S-Video signal. If S-Video signal is not detected, the adapter will default to AV signal.
• Supported Console with S-Video output
  N64: All NTSC consoles and most PAL consoles support S-Video output
  GameCube: All NTSC consoles support S-Video output; PAL consoles do not support S-Video
  SNES / SFC: All NTSC and PAL consoles support S-Video output, except the cost-reduced smaller size models (SNS-101 and SHVC-101)
