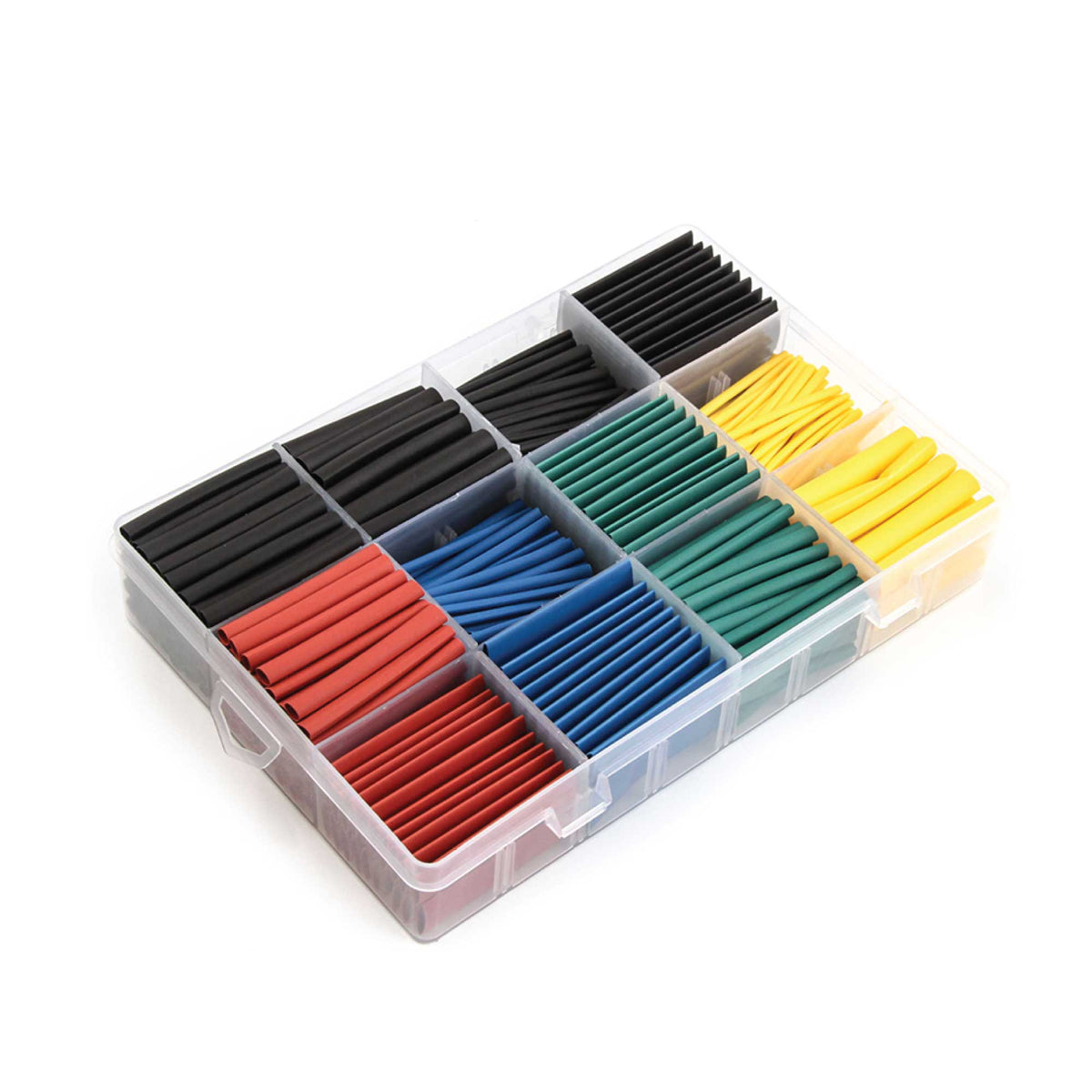

530 Pcs Heating Shrink Sleeve Set Heat Shrinkable Insulation Electrical Cable Tube

530 pieces Heat Shrink tubing Set includes an assortment of shrink sleeves for the job at hand, providing electrical insulation, mechanical protection, environmental sealing, and strain relief for applications such as back-end connector sealing, breakouts, and connector-to-cable transitions.

Specifications:

• Large collection of heat shrink tubing 5 colours
• Supplied Internal Diameter 1.5mm ,2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm 8.0mm and 10.0mm
• Colour Black, Red, Yellow, Blue, Green
• Material: Polyolefin
• Shrinkage Ratio: 2: 1 (will maximum shrink to 1/2 its supplied diameter)
• Operating Temperature: -55 ° C to + 125 ° C Minimum Shrink Temp: + 70 ° C
• Full Shrink Temp: + 110 ° C Maximum
• Tensile Strength: 10.4 Mpa
• Dielectric Strength: 15 kV / mm
• Flammability: Flame Retardant
• Approvals: RoHs, CE
• Container Size (cm): 20(L) x 12(W) x 3.5(H)

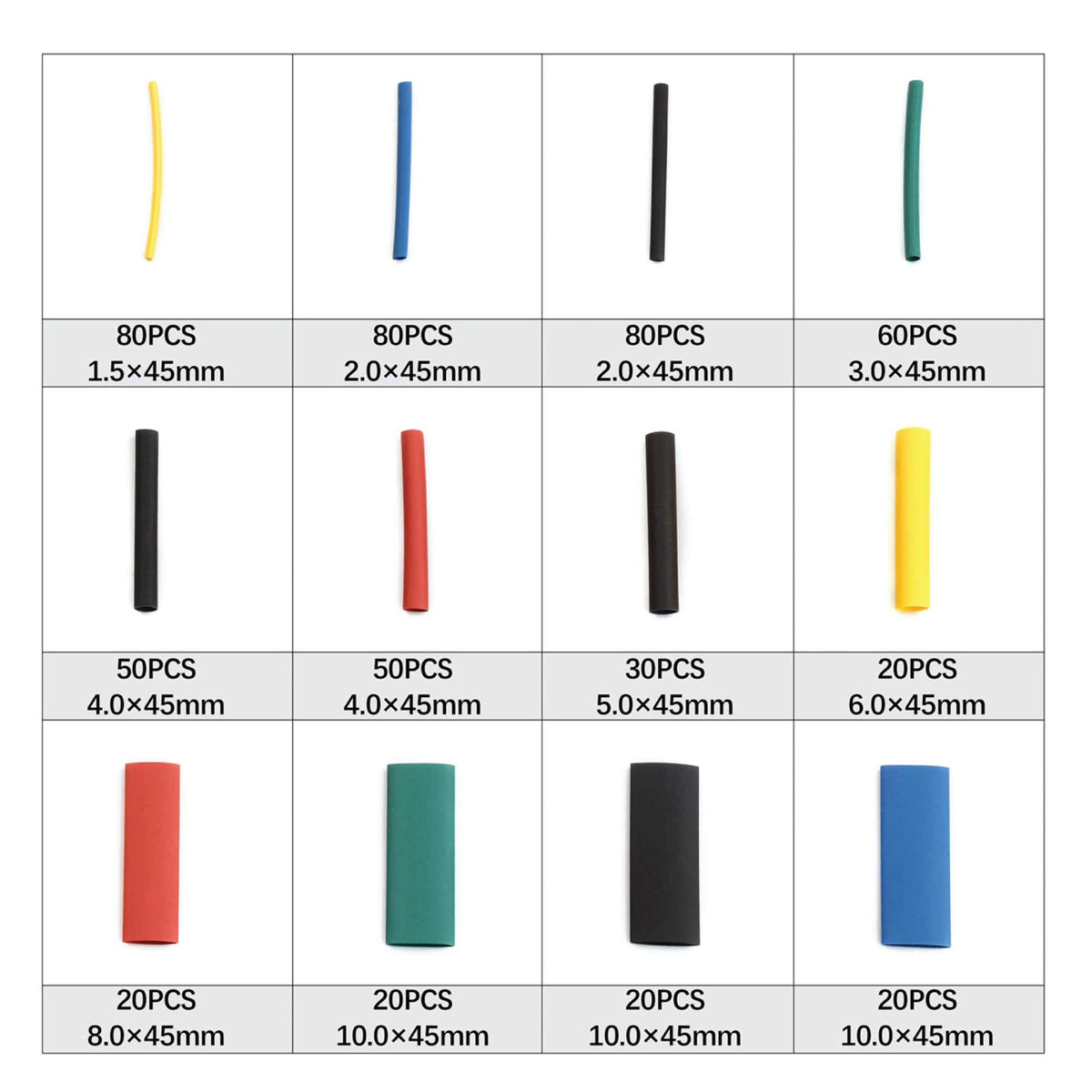

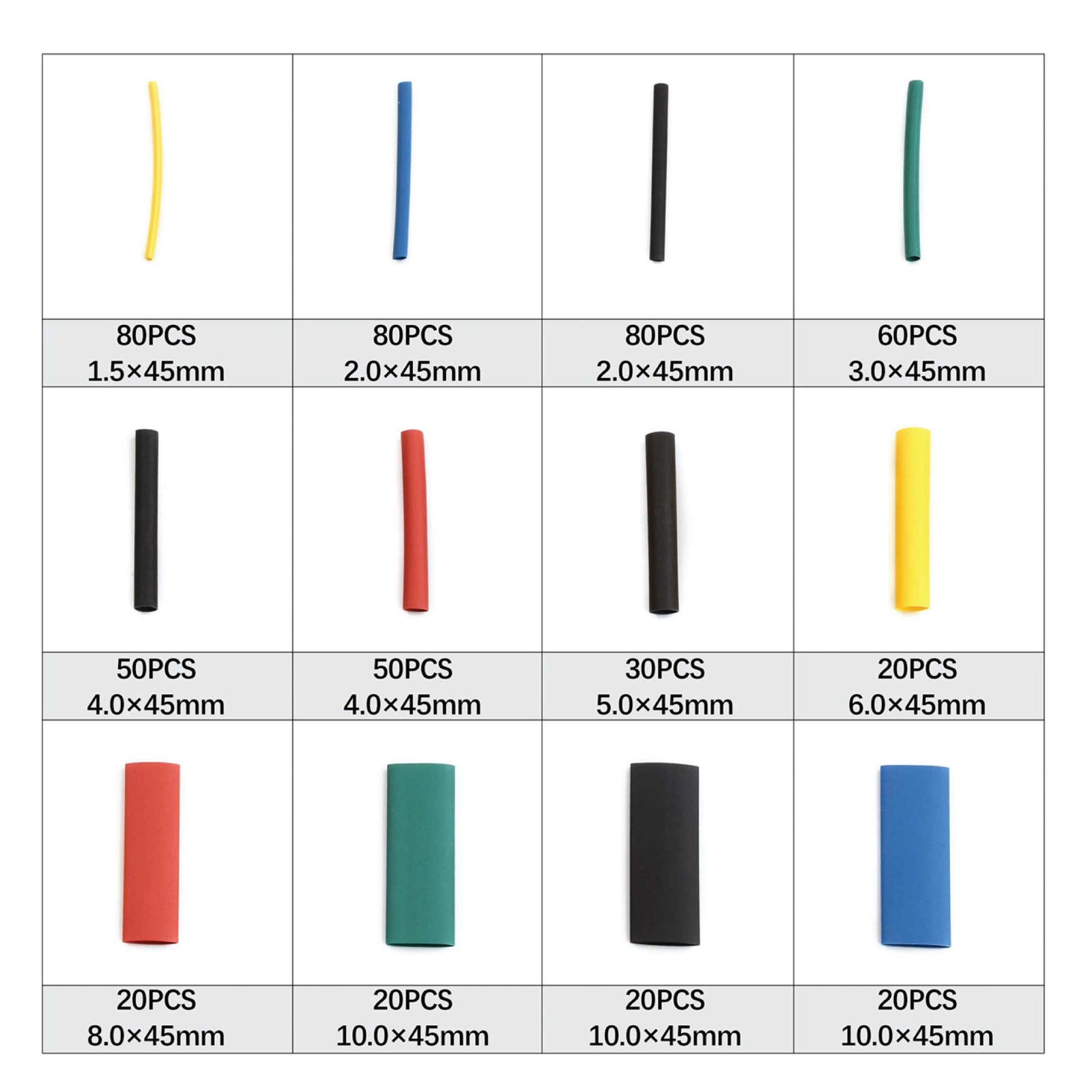

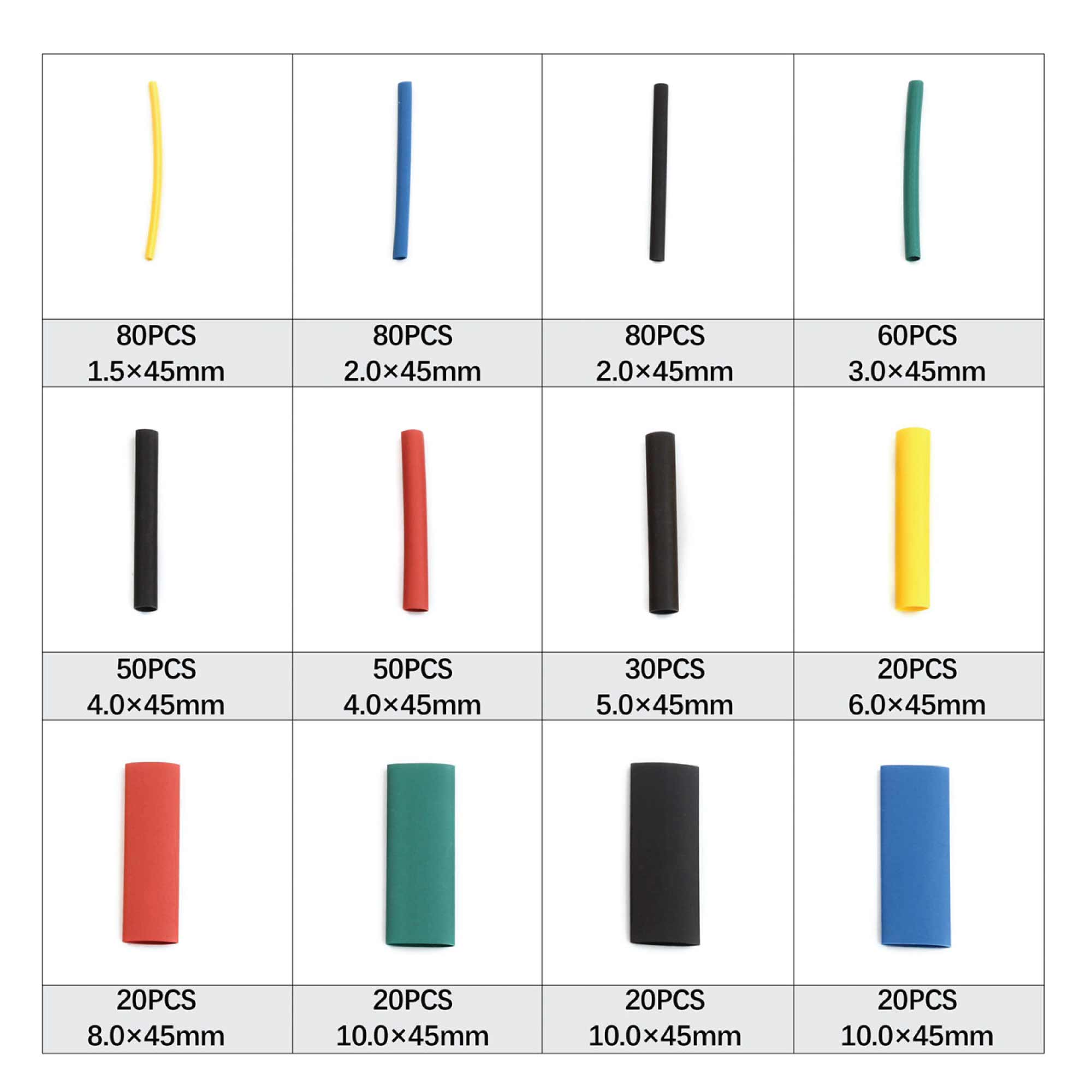

Package Includes:

(Quantity x Internal Diameter x Single Length)

• 80pcs x 1.5 x 45mm Yellow
• 80pcs x 2.0 x 45mm Blue
• 80pcs x 2.0 x 45mm Black
• 60pcs x 3.0 x 45mm Green
• 50pcs x 4.0 x 45mm Red
• 50pcs x 4.0 x 45mm Black
• 30pcs x 5.0 x 45mm Black
• 20pcs x 6.0 x 45mm Yellow
• 20pcs x 8.0 x 45mm Red
• 20pcs x 10.0 x 45mm Green
• 20pcs x 10.0 x 45mm Blue
• 20pcs x 10.0 x 45mm Black

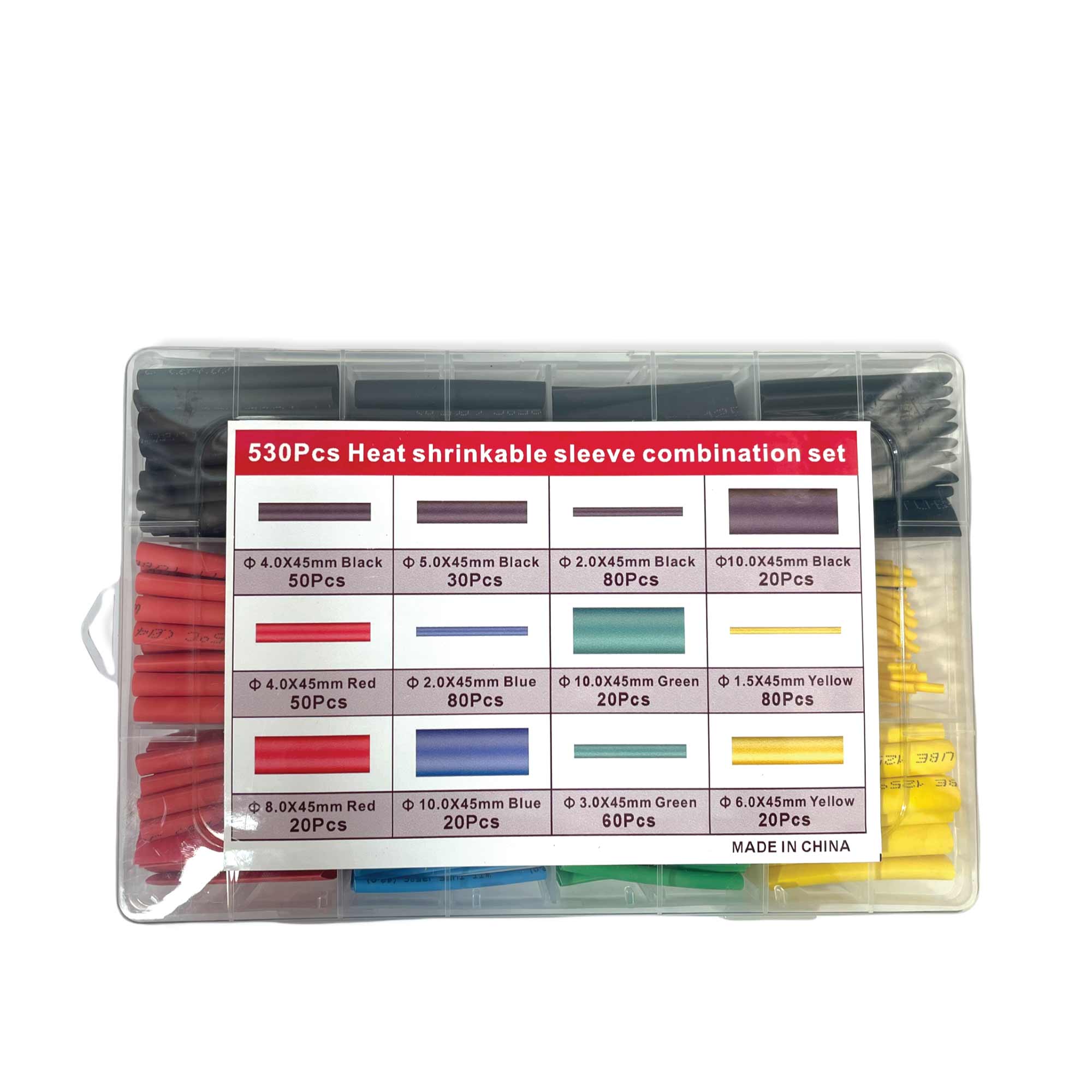

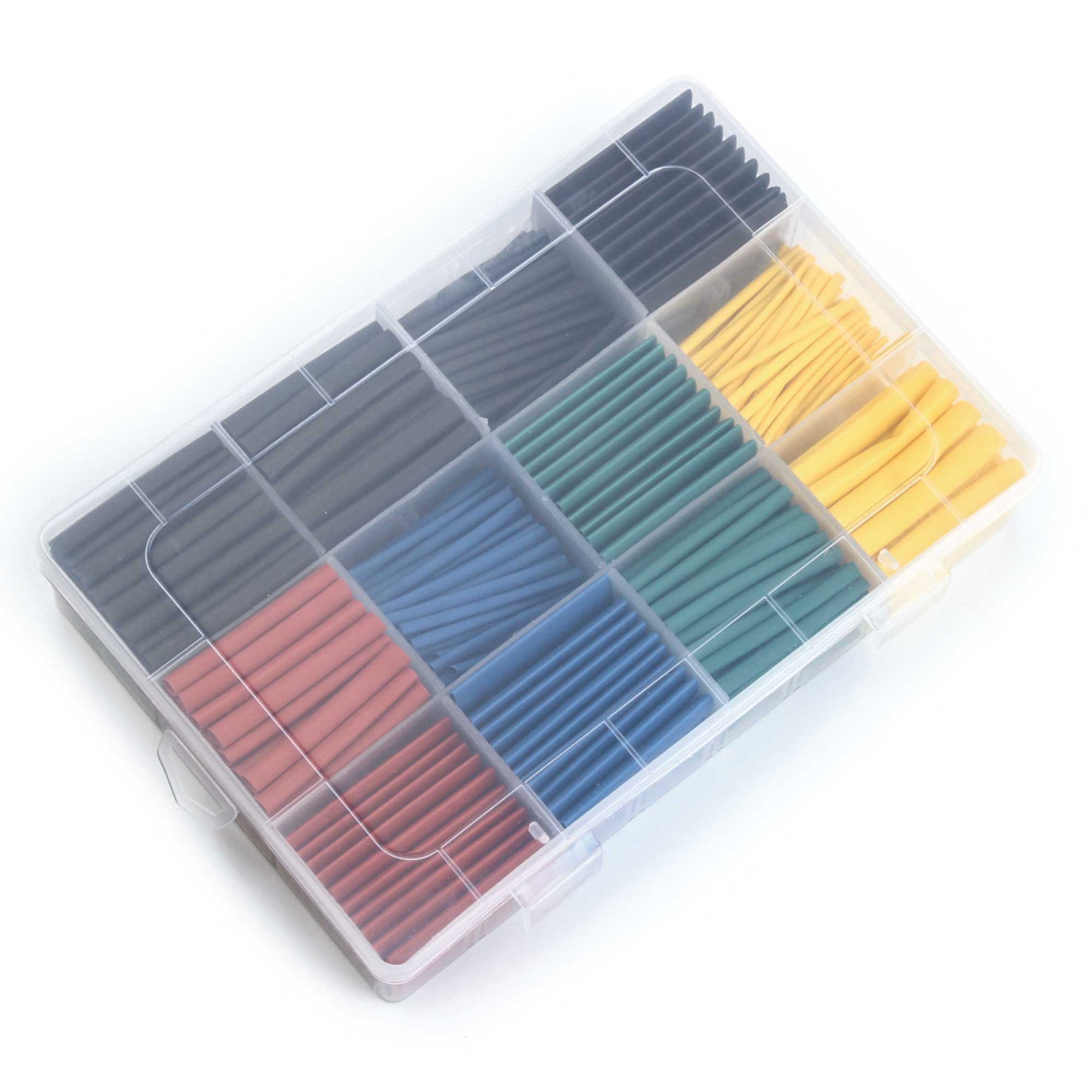

• Packaged in 1 x Plastic Compartmentalised Container
