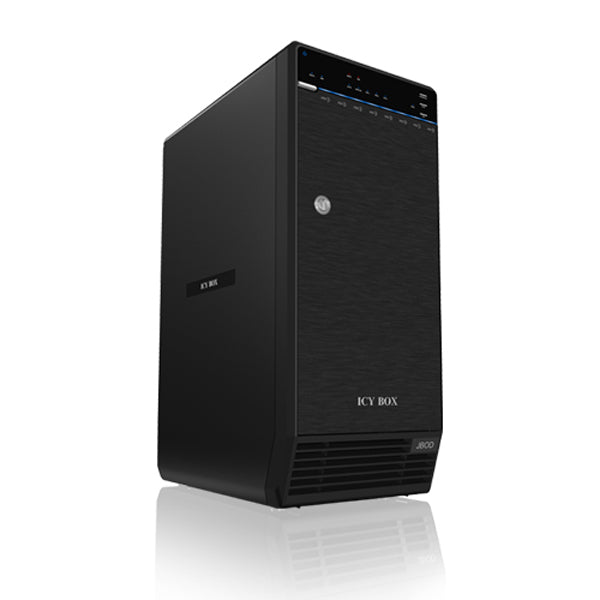

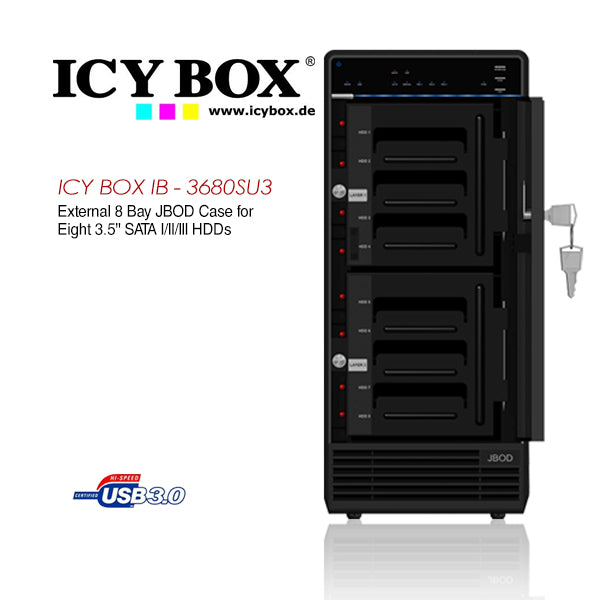

ICY BOX (IB - 3680SU3) External 8 Bay JBOD Case for 8 x 3.5 Inch SATA l/ll/lll HDDs

Features:

IB-3680SU3

External 8 Bay JBOD Case for eight 3.5 inch SATA l/ll/lll HDDs

Silent operation by thermal controlled fan

Energy saving by supporting sleep modus

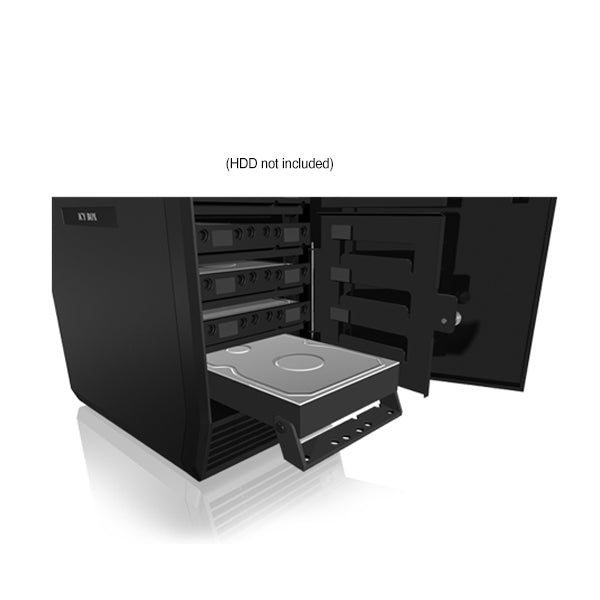

Easy assembling by trayless design

HDD capacity unlimited

External data interface: USB 3.0, eSATA

Plug & Play and Hot Swap

Windows 7/8.x, MAC OS X > 10.5

JBOD (Single)

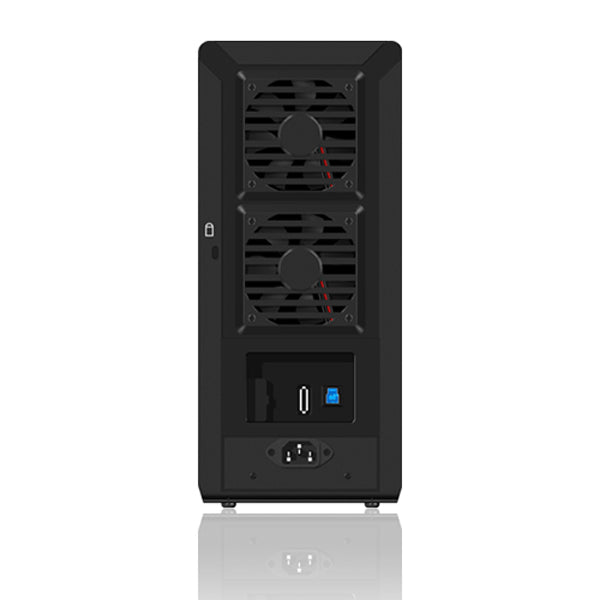

The external JBOD enclosure can accommodate a total of eight SATA I / II / III hard drives or SSDs. It consists largely of aluminium and is therefore stable and dissipates heat very well. The cooling of the drives is achieved due to two temperature controlled 80mm fan on the back and corresponding air-inlets support below the drive bays on the front. The door of the enclosure can be locked.

The display of the JBOD system informs through various LEDs about operation, fan, interfaces and disk usage. As a huge JBOD data storage system can provide its full function. Except the existing external interfaces USB 3.0 and eSATA the ability to use hard drives without any capacity constraints play a big role as well as.

Among the capabilities of the JBOD enclosure are various other convenient functions. Such as, for example, the strapless hard disk installation and energy-saving standby mode. As well as hot-swap capability, plug & play and support for both Windows and MAC systems.

For users with larger demands the ICY BOX IB-RD3680SU3 enclosure provides support of RAID Level 0 (striping) / 10/5/50 / BIG (Spanning).

Specifications:

Material: Aluminium / Plastic

HDD size (inch): 8 x 3.5 inch

HDD size (cm): 3.5 inch

HDD interface: SATA I/II/III

HDD capacity: Unlimited

Hot Swap: Yes

Plug & Play: Yes

External data interface: USB 3.0 / eSATA

Operating system: Windows 7/8, MAC OS X

Transfer rate:USB 3.0 up to 5 Gbit/s, eSATA up to 3.0 Gbit/s

Power switch: Yes

Lock: Yes

LED: Power, fan, interface, HDD in use, access and error (RAID)

Power connector: Internal power supply, Input: AC 100 - 240 V, 2 A Output: 5 Vsb/3 A, 12 V/6 A, 12 V/6 A

Packing content: 1x device, 1x power supply cable, 1x USB 3.0 cable, 1x eSATA cable, 8x handles, 1x set of screws, 1x quick installation guide

Gross weight (incl. packing): 5.7 kg

Net weight: 5 kg

Dimension of packing box: 98x234x240 mm

Dimension of article: 253x155x352 mm

Package Content:

1 x ICY BOX (IB - 3680SU3) External 8 Bay JBOD Case for 8 x 3.5 Inch SATA l/ll/lll HDDs
