mbeat Elite X14 Triple 4K Display Multi-Port USB-C Hub

Features:

The mbeat Elite X14 Hub offers triple 4K display support, fast data transfer, versatile connectivity, 100W pass-through charging, and built-in audio support, making it a comprehensive and efficient multi-port USB-C hub for all your needs.

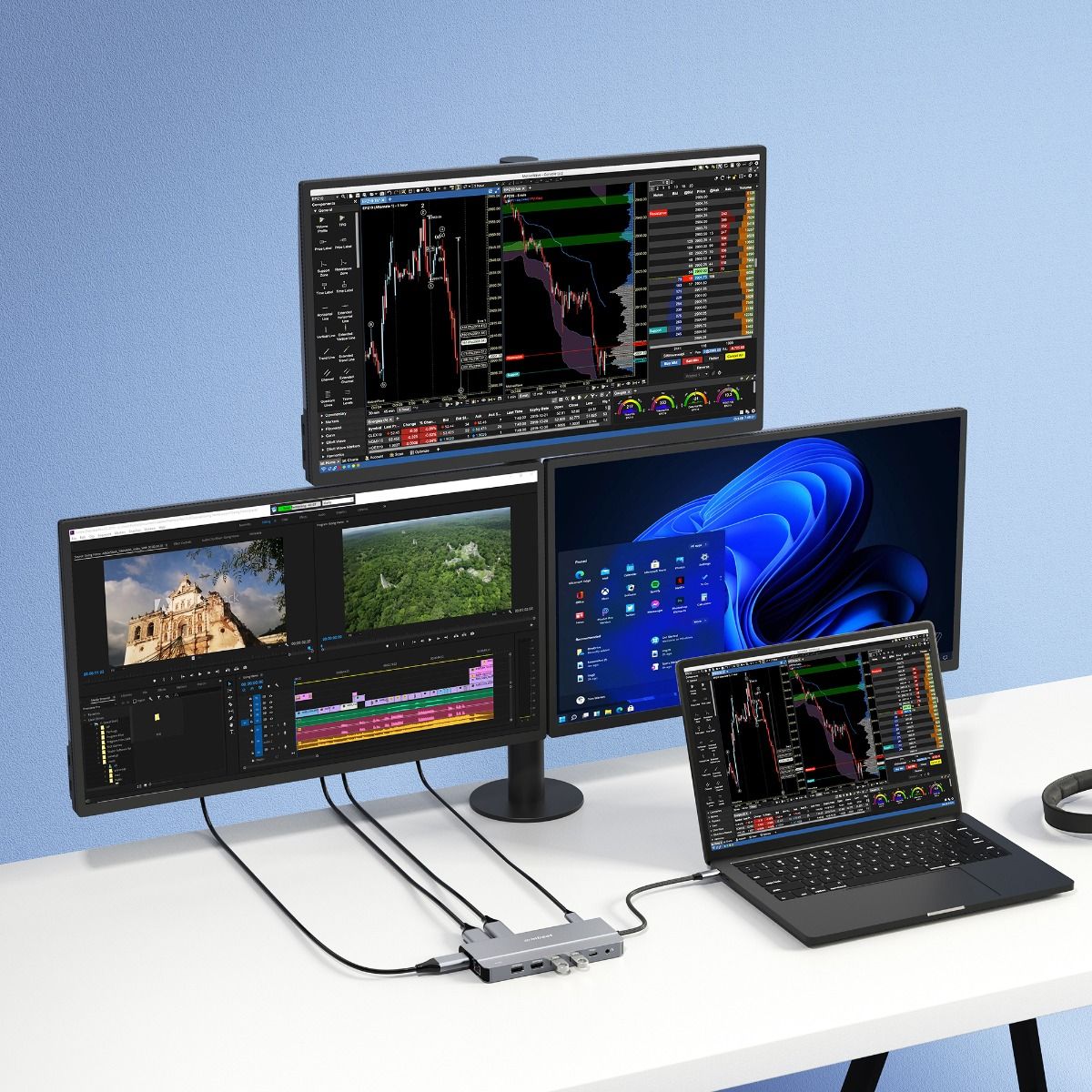

Triple 4K Display Support
Maximize your productivity by connecting up to three external displays simultaneously. The hub features two HDMI ports and one DisplayPort, all capable of delivering 4K resolution for crisp and vibrant visuals. Whether you're tackling detailed graphic design projects or enjoying high-definition entertainment, this hub ensures smooth and immersive viewing across multiple screens.

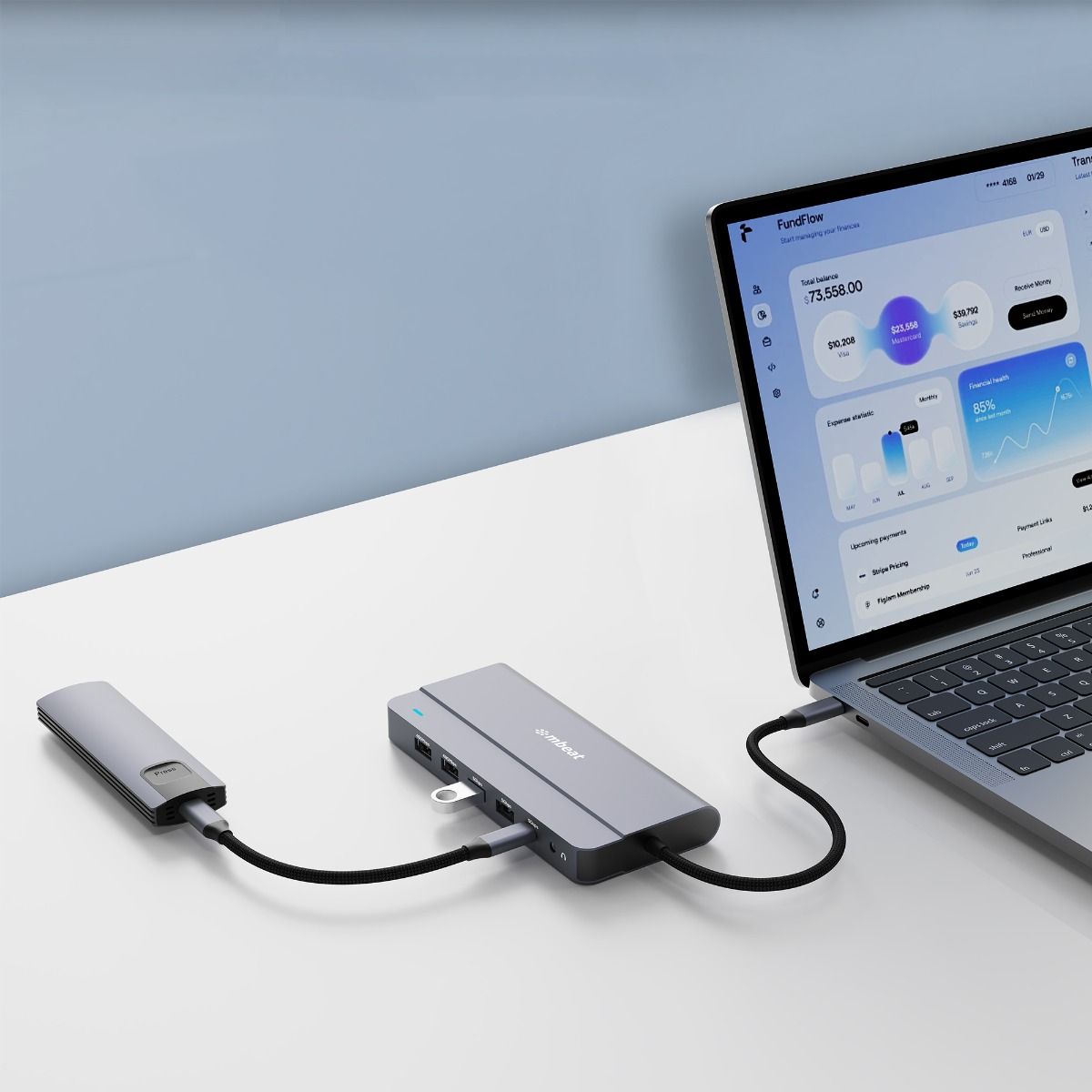

High-Speed Data Transfer
Experience ultra-fast data transfer speeds with the hub's USB-A 3.2 Gen 1 and USB-C 3.2 Gen 1 ports, both offering up to 5Gbps. This makes it ideal for accessing large files quickly, backing up data, or transferring content to and from SSDs and U-disks. Whether you're a content creator or a professional on the go, these high-speed ports ensure that your workflow remains efficient and uninterrupted.

Comprehensive Connectivity
The mbeat X14 hub is designed as an all-in-one connectivity solution. It includes three USB-A 2.0 ports for reliable connections with legacy devices such as keyboards, mice, and other peripherals. The integrated SD/TF card reader allows for quick and easy access to your media files, while the RJ45 port supports 10/100/1000M Gigabit Ethernet, ensuring a stable and fast wired internet connection for streaming, downloads, and online work.

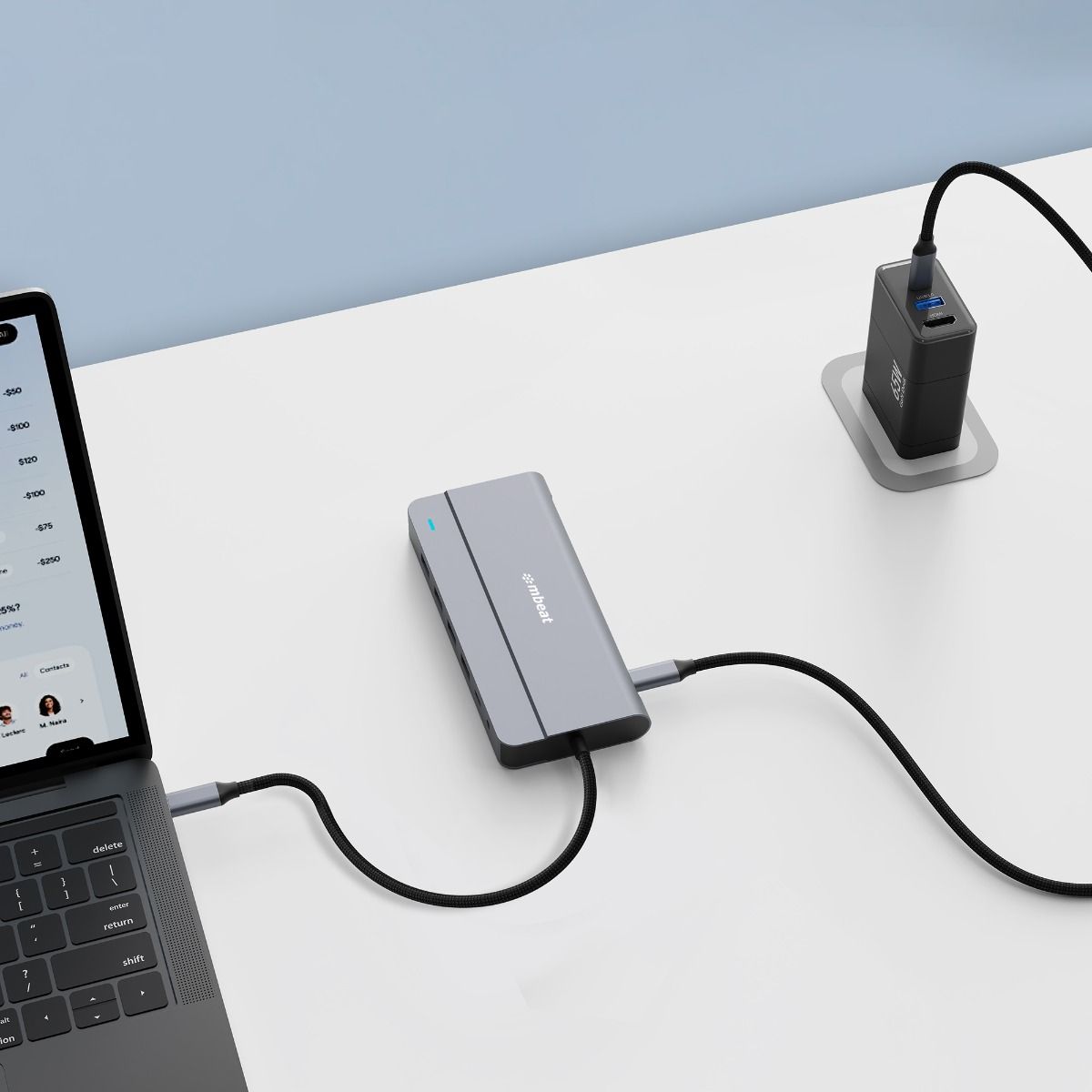

100W Power Delivery
Power your devices efficiently with the hub's PD3.0 pass-through charging capability, which supports up to 100W. This ensures that your laptop or other USB-C devices stay charged while simultaneously using the hubs other functions, such as data transfer or video output.

Integrated Audio Support
Stay connected and engaged with the hub's built-in audio jack, which supports both microphone and audio input. Whether you're conducting virtual meetings, recording podcasts, or enjoying music, this feature ensures clear and reliable audio performance.

Specifications:

Interface:

• USB-C (Host): USB-C 3.2 Gen 2 1, Supports USB-C DisplayPort 1.4 (DP-Alt Mode)
• HDMI Port: HDMI 2.0 Version 2, Max. resolution 4K/60Hz
• Display Port: DP 1.4 Version 1, Max. resolution 4K/144Hz
• USB-A Port (Data): USB 3.2 Gen1 2, Max. 5Gbps; USB 2.0 3, Max. 480Mbps
• USB-C Port (Data): USB-C 3.2 Gen1 1, Max. 5Gbps
• USB-C PD Port: PD 3.0 1, Max. 100W (5V~20V/5A), USB-C PD charger not included
• LAN Port: RJ45 1, Gigabit Ethernet (10/100/1000Mbps)
• Audio Port: 3.5mm 1, Audio In/Out
• SD: SD 2.0 1, Max. Write Speed 10MB/s, Read Speed 18MB/s
• MicroSD: MicroSD 2.0 1, Max. Write Speed 10MB/s, Read Speed 18MB/s

Display Configuration:

• Windows OS (USB-C DP-Alt DP1.4)
  • Single Display: Max. 4K/60Hz (HDMI 1/2); 4K/144Hz (DP)
  • Dual Display: Max. 4K/60Hz (HDMI 1/2 DP)
  • Triple Display: Max. 4K/60Hz (HDMI 1); 4K/30Hz (HDMI 2); 4K/60Hz (DP)
• Windows OS (USB-C DP-Alt DP1.2)
  • Single Display: Max. 4K/30Hz (HDMI 1/2 DP)
  • Dual Display: Max. 1080p/60Hz (HDMI 1/2 DP)
  • Triple Display: Max. 1080p/60Hz (HDMI 1/2); 1080p/30Hz (DP)
• Mac OS (USB-C DP-Alt DP1.4)
  • Single Display: Max. 4K/60Hz (HDMI 1/2); 4K/144Hz (DP)
  • Dual Display: Max. 4K/60Hz (HDMI 1/2 DP)
  • Triple Display: Max. 4K/60Hz (HDMI 1/2 DP)
• Mac OS (USB-C DP-Alt DP1.2)
  • Single Display: Max. 4K/30Hz (HDMI 1/2 DP)
  • Dual Display: Max. 4K/30Hz (HDMI 1/2 DP)
  • Triple Display: Max. 4K/30Hz (HDMI 1/2 DP)

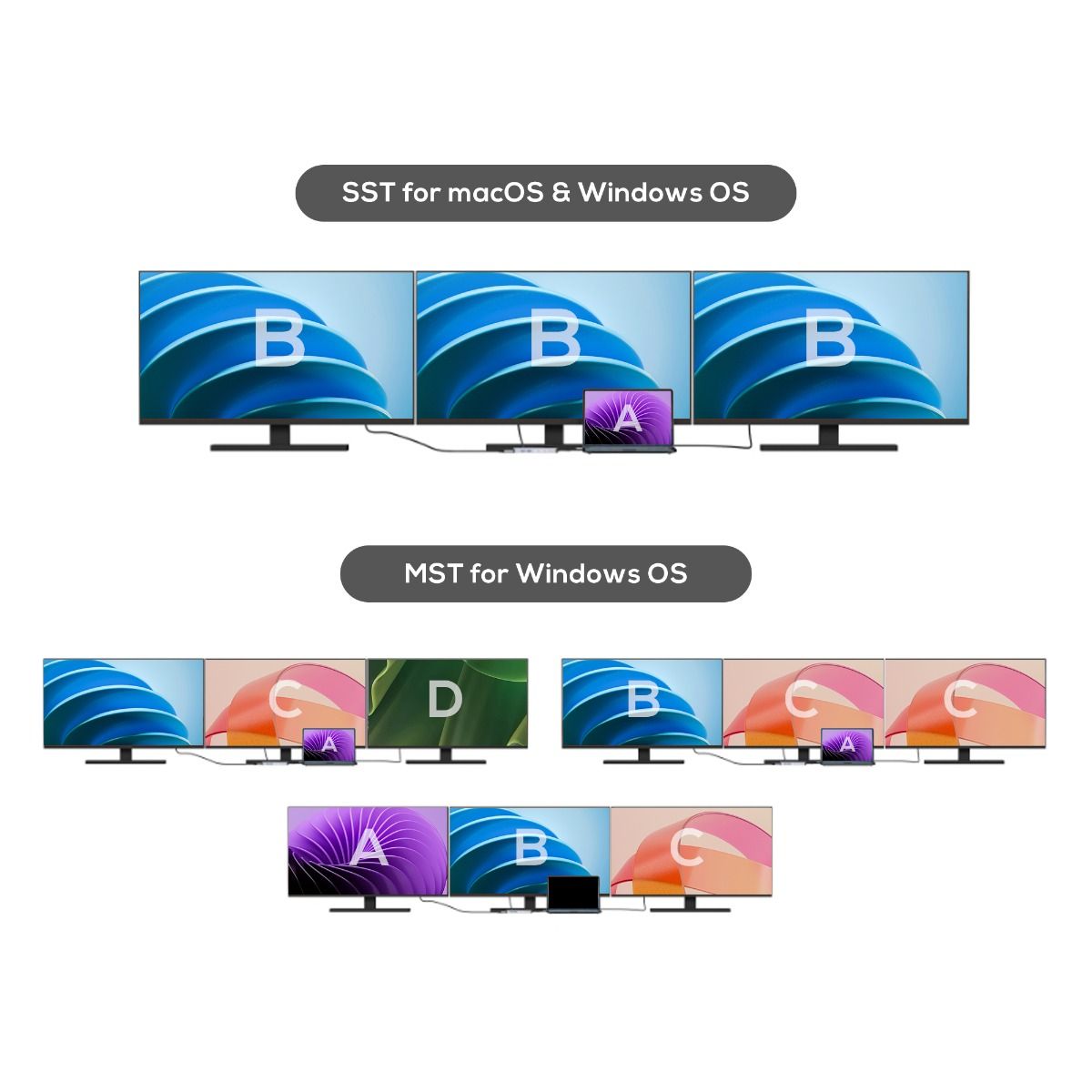

Note: Windows OS laptop supports MST (Mult-Stream Transport), which means that connecting two external monitors can display different contents.macOS laptop only supports SST (Single-Stream Transport) in USB-C Display Port (DP Alt-mode). The MacBook with an M1, M2 and M3 CPU currently only supports one external monitor display. Connecting two external monitors will only display duplicated contents.

Compatible OS:

• Compatible with Windows OS 10,11; mac OS; iOS; Android OS

Compatible Device:

• Support the most popular USB-C enabled laptops, such as Apple MacBook Air, MacBook Pro, Huawei Mate Book, Lenovo notebook, Xiaomi notebook, Asus notebook, Dell notebook, HP notebook, Huawei Mate10, etc.
• Thunderbolt 3 port compatible.

Package and Contents:

• Cable Length: Approx. 20cm
• Contents: USB-C Multi-Port Hub 1, Manual 1
• Product Dimension: 14.5 6.45 1.7cm
• Product Weight: 0.142kg
• Package Dimension: 21.5 13.5 2.3cm
• Package Weight: 0.173kg
