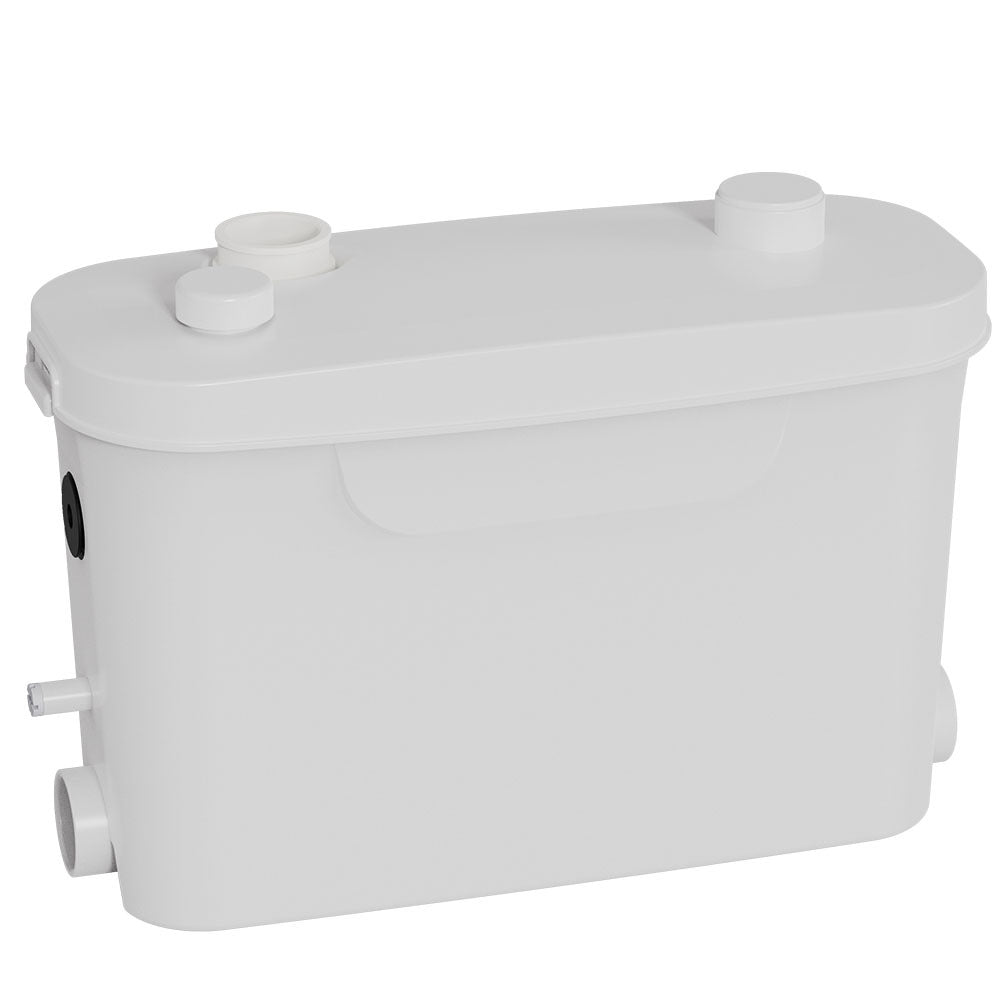

PROTEGE Grey Water Pump, with 3 Inlet, for House, Bathroom, Shower, Sink, Washing Machine

Introducing the Protege WashLink 3 Plus Grey Water Pump - your ultimate 3 inlet plumbing solution.

EFFORTLESS INSTALLATION

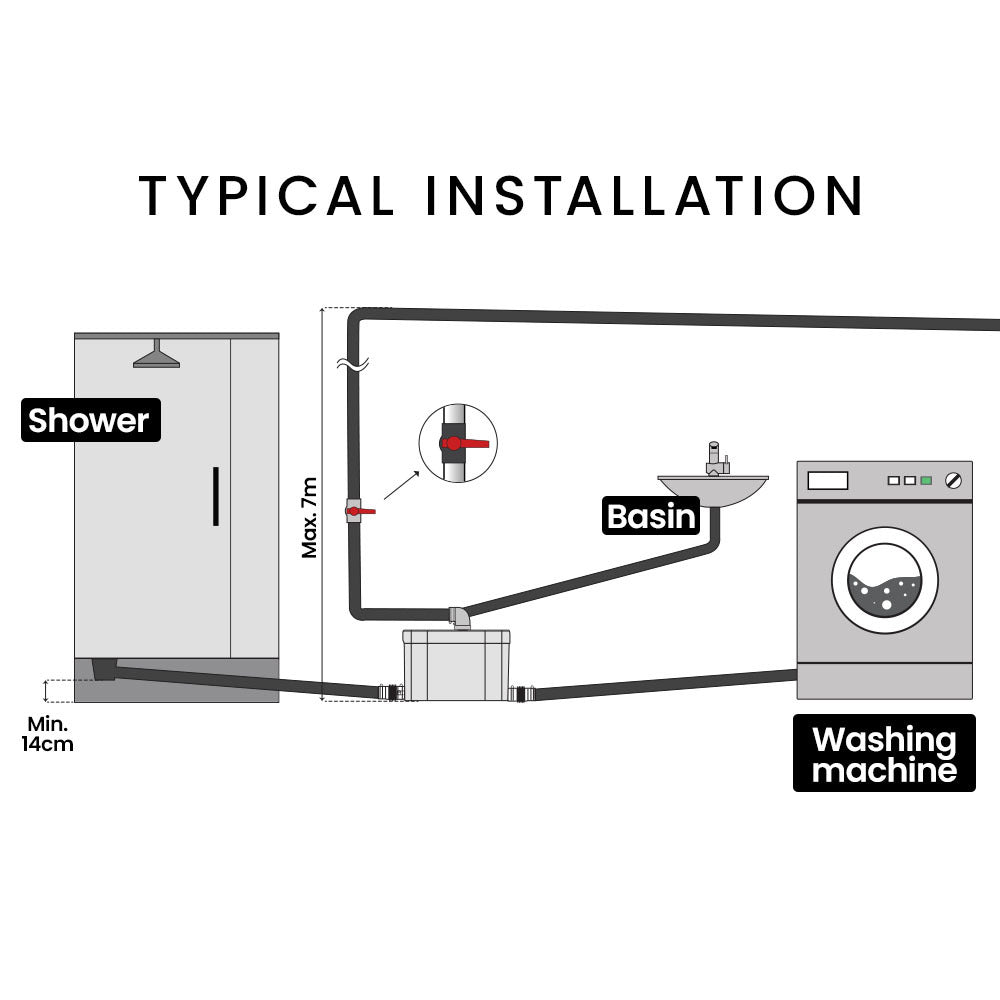

This pump can be conveniently fitted next to a shower tray, under a sink or beside a tub making it the ideal choice to overcome gravity drainage issues. It enables you to have basement showers and install new drains in any location without major plumbing work.

COST-EFFICIENT
No more costly construction work, trench digging, or concrete cutting and the pump is only activated when in use. The Protege grey water pump ensures that you can create a self-contained wet area without breaking the bank.

SEWER CONNECTION FLEXIBILITY
Install where direct sewer plumbing is not available.

SILENT OPERATION
Enjoy peace and quiet as the pump operates almost silently, ensuring your comfort is never compromised.

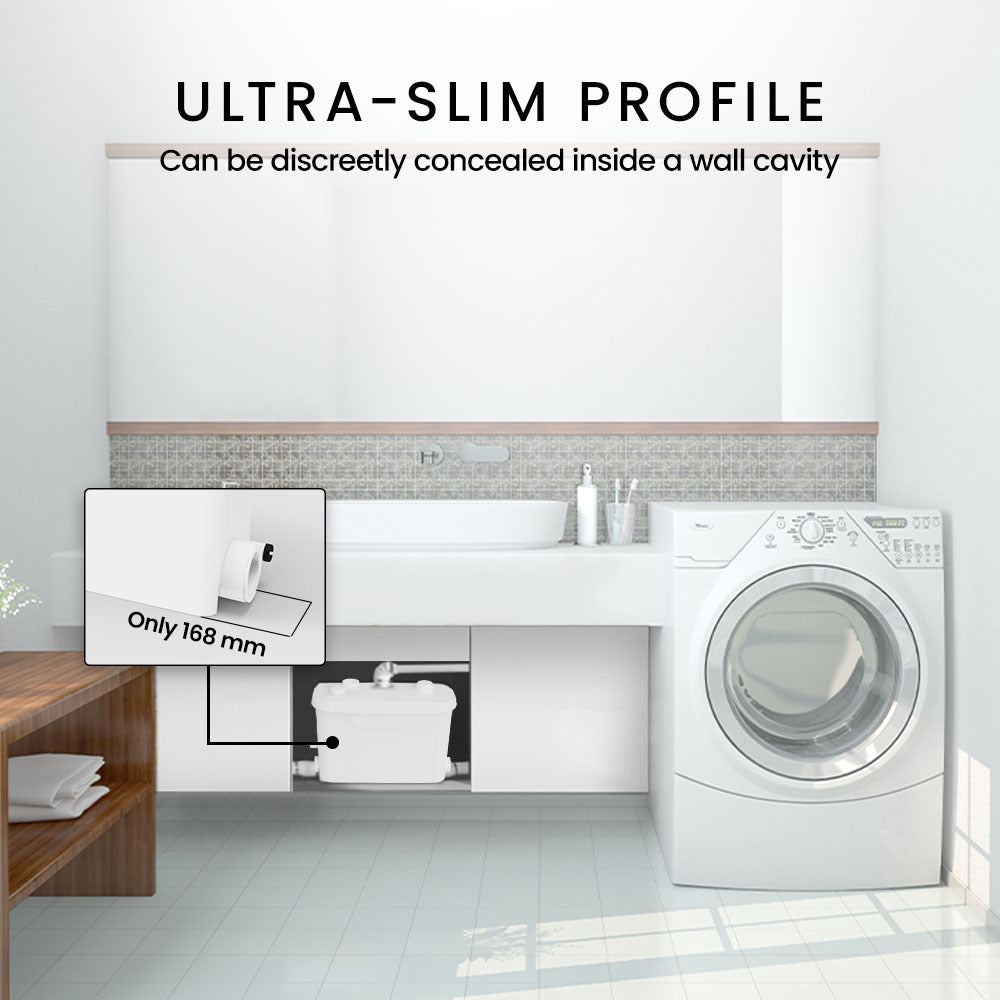

SLIM CONSTRUCTION
Tight spaces are no longer a concern; our pump's slim and compact design allows it to fit seamlessly in confined areas, under sinks, behind showers and next to tubs.

COPPER WOUND MOTOR
Built to last, our pump features a copper wound motor that combines durability with energy efficiency, guaranteeing long-lasting, reliable performance.

Upgrade your plumbing system with the 3 Inlet Grey Water Pump and experience the convenience, efficiency, and cost savings you deserve.

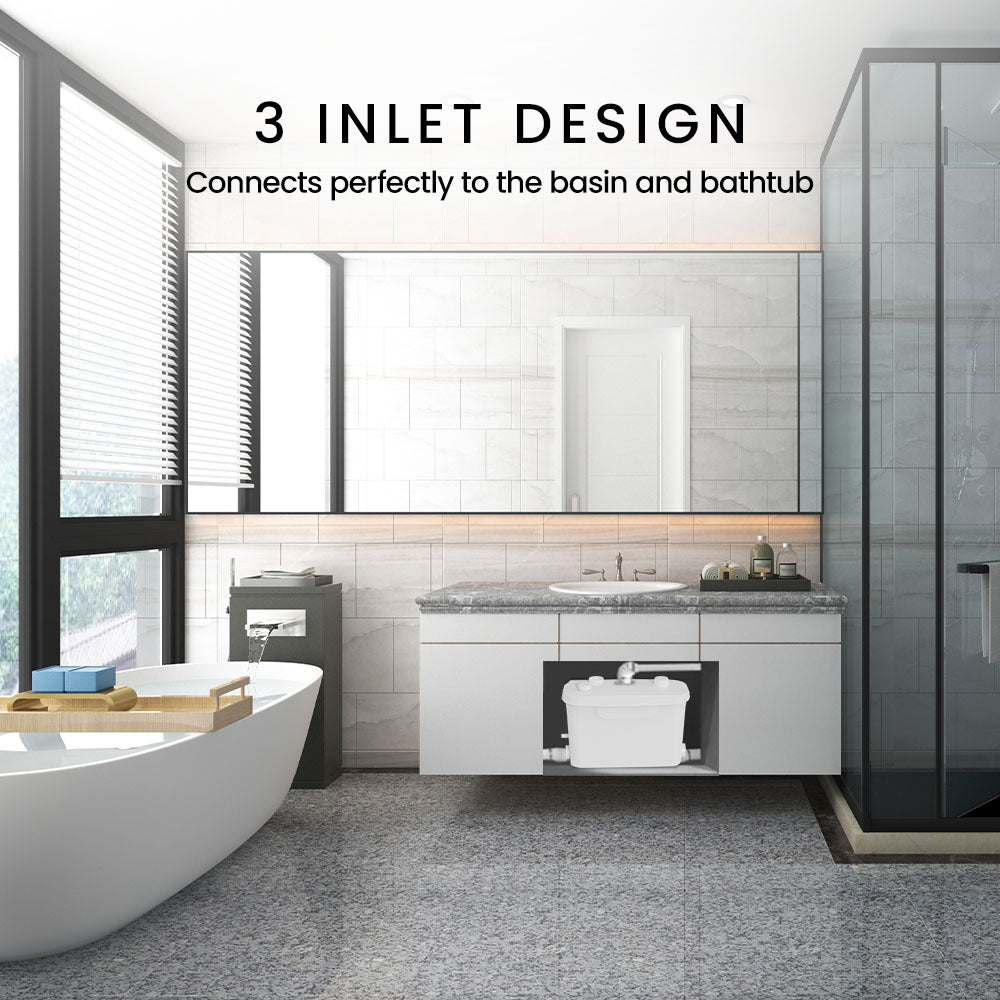

• Versatile Placement
• Suitable for: Wash basins, Bathtub, Showers, Washing machines (not suitable for toilets)
• Effortless Installation
• Cost-Efficient
• Sewer Connection Flexibility
• Silent Operation
• Slim Construction
• Copper Wound Motor

SPECIFICATION

• Brand: Protege
• Model: WashLink 3 Plus
• Approvals: GS / CE

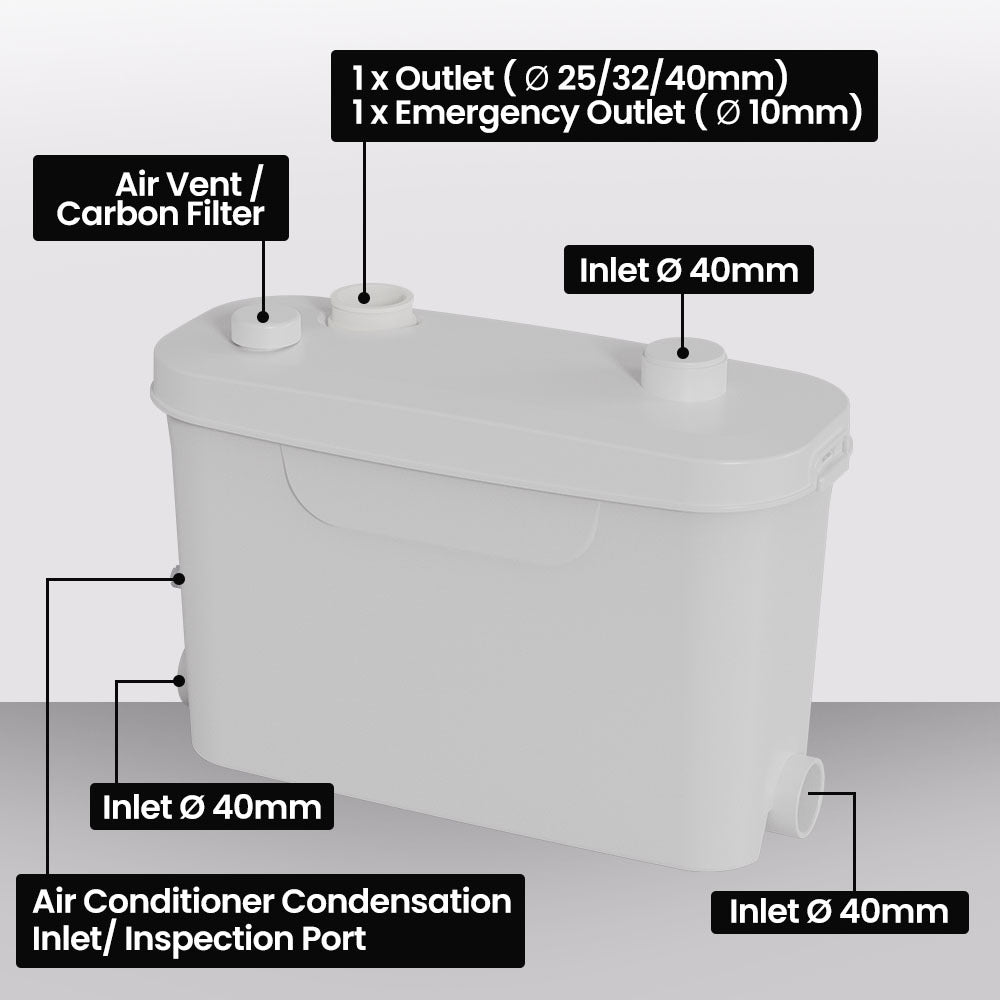

• Number and size of inlet: 3 x φ 40mm
• Number and size of outlet: 1 outlet (23/ 28/ 32/ 44 mm), 1 x Emergency Outlet φ 10 mm
• Tank size: 13 L
• Flow rate at max head (L/min): 100L / Min
• Water temperature: 65’C (80’C in 4 hours)
• Thermal protection: 100’C
• Noise level (DBS): 30~40dB

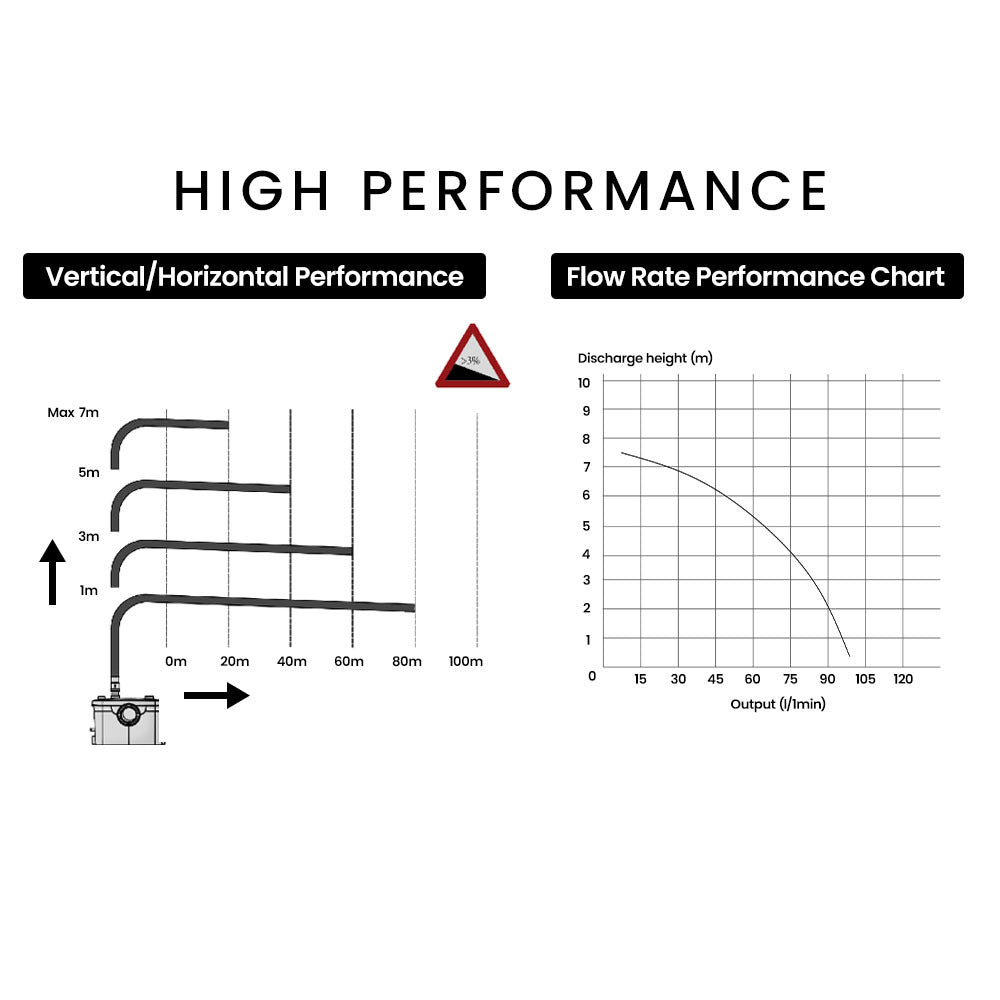

• Horizontal discharge (m): 70M
• Vertical discharge (m): 7M
• IP rating: IPX4
• Air vent: Yes
• Return valve: Yes
• Power: 400W
• Motor: 220~240V / 50Hz / 2800 RPM Copper wire motor with oil
• Motor size: φ 95 mm
• Plug: SAA
• Cord length: 1.7 m
• Tank material: Polypropylene
• Blade material: None
• Fully automated operation triggered by flushing: Yes
• Water start level: 7.5 ~ 8.5 cm
• Shower Height (side): 14 cm
• Minimum Shower Floor Clearance: 14 cm

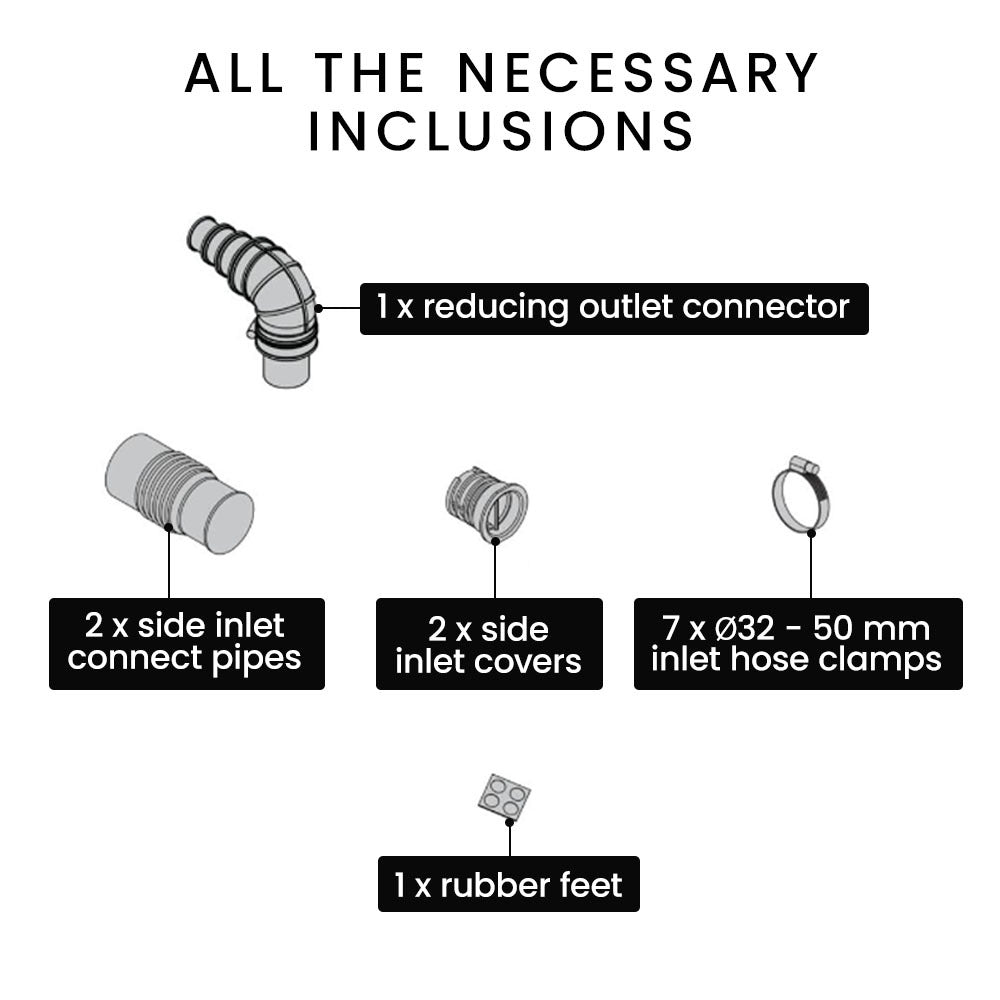

IN THE BOX

• 1 x Protege Grey Water Pump
• 1 x Reducing outlet connector
• 2 x Side inlet covers
• 2 x Side inlet connect pipes
• 7 x ⌀ 32-50mm Inlet hose clamps
• 1 x Rubber feet set
• Note: User Manual is accessible online
• Note: Requires assembly

SIZE WEIGHT

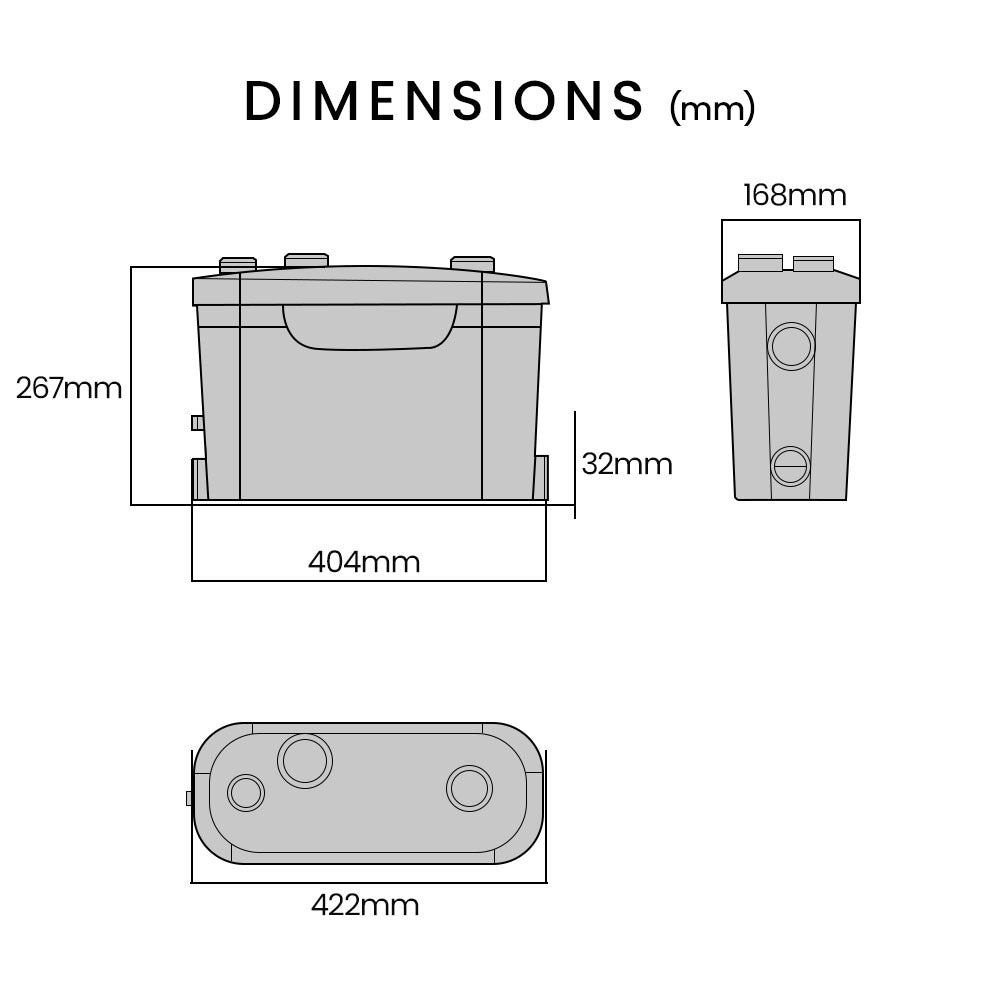

• Product Dimensions (W x D x H): 422 x 168 x 267mm
• Product Weight: 7kg
• Carton Dimensions (W x L x H): 25 x 50 x 33cm
• Carton Weight: 6kg
