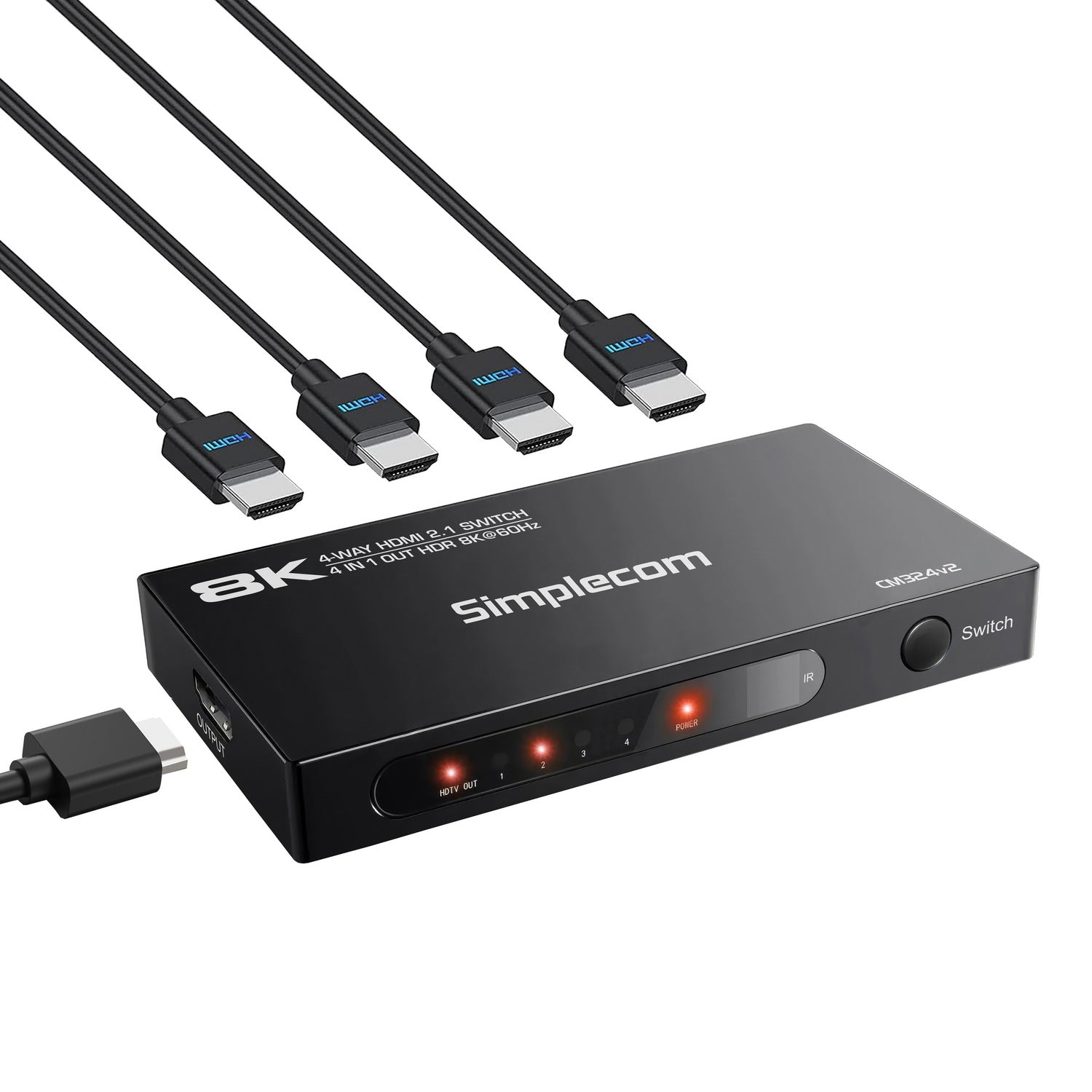

Simplecom CM324v2 4-Port HDMI 2.1 Switch with Remote 4 IN 1 OUT Splitter HDCP 2.3 8K@60Hz

Simplecom CM324v2 4-Port HDMI 2.1 Switch 4 IN 1 OUT Splitter HDCP 2.3 8K@60Hz

Upgrade your display setup with this high-performance HDMI 2.1 switch, designed to connect up to four HDMI source devices to a single HDMI port on your display. Perfect for gaming consoles, streaming devices, Blu-ray players, and more, this switch supports ultra-high-definition resolutions up to 8K@60Hz and 4K@120Hz, delivering stunning clarity and smooth visuals.

Compatible with HDMI 2.1 and supports bandwidth up to 48Gbps, this device also supports HDCP 2.3, ensuring secure and uninterrupted content playback. The included IR remote control allows the switch to be controlled from a distance. Easily switch between HD devices without having to get up from your seat.

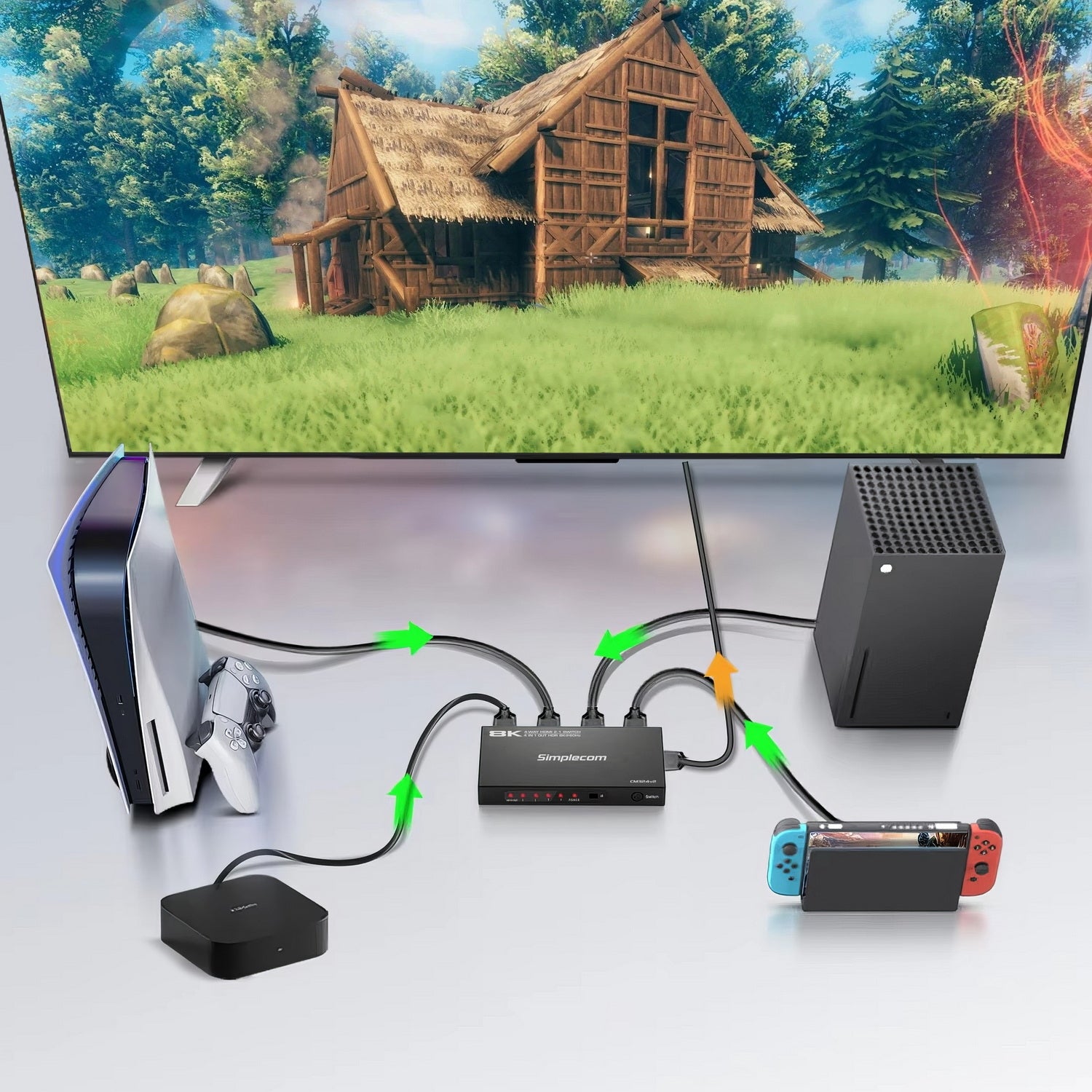

Ideal for Blu-ray players, PS5, PS4 Pro, PS3, Xbox Series X/S, Apple TV, Fire TV, Chromecast, Foxtel, and more. Perfect for gamers, home theatre setups, and professionals, this HDMI switch delivers high-performance connectivity and unlock the potential of your display.

Features

• HDMI 2.1 compliant, backward compatible with previous HDMI versions
• Supports up to 4 HDMI source devices sharing a single HDMI port on the display
• Easy to use with manual button or included remote control
• HDCP 2.3 compliant, backward compatible with previous HDCP versions
• Supports video resolutions up to 8K@60Hz or 4K@120Hz
• Supports video bandwidth up to 48Gbps
• LED indicators for power status and active input port
• Plug and Play, powered by USB

Specifications

• Model: CM324v2
• HDMI version: HDMI 2.1, backward compatible
• HDCP version: HDCP 2.3, backward compatible

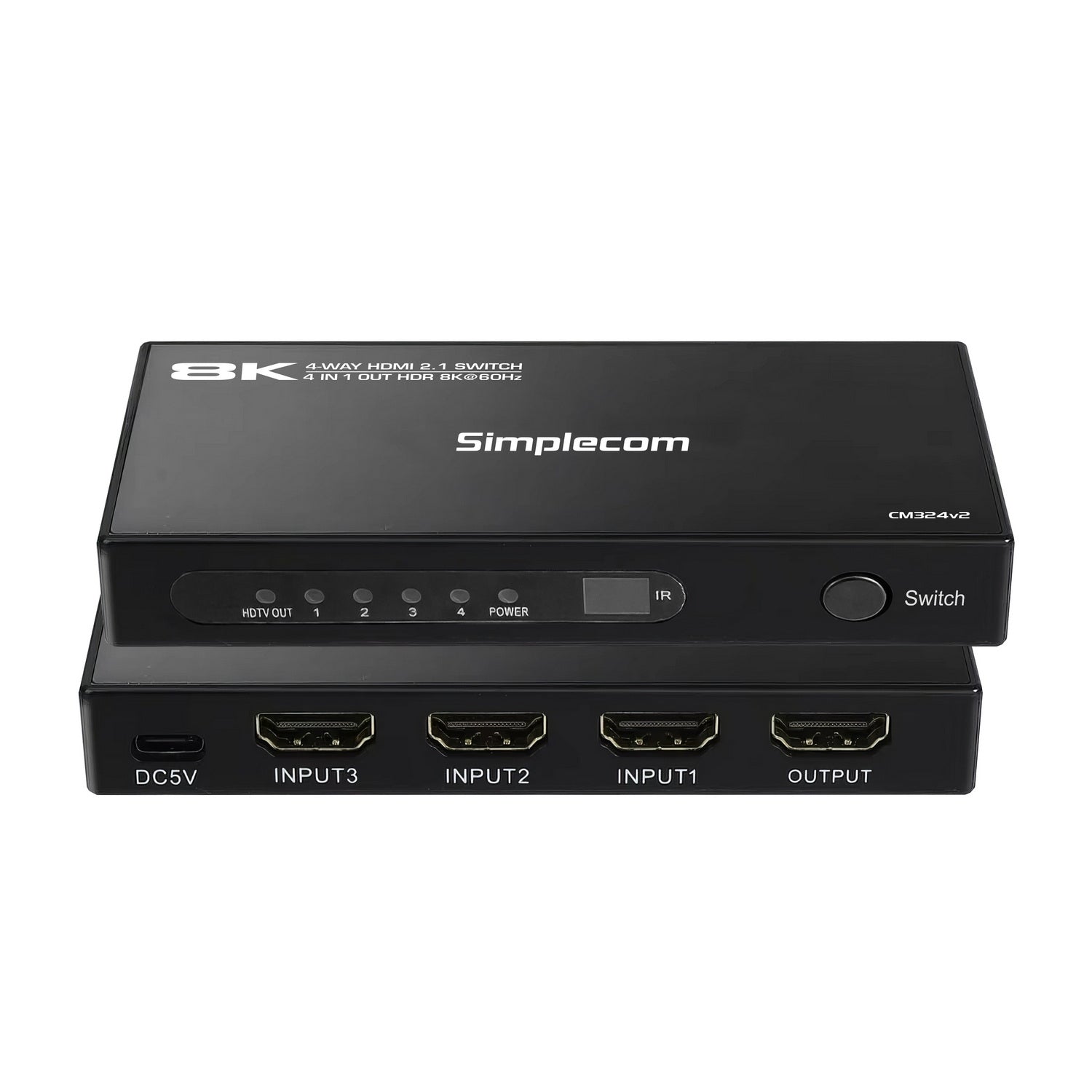

• HDMI Input: 4x HDMI Female
• HDMI Output: 1x HDMI Male
• HDMI Max Bandwidth: 48Gbps
• Resolution Support: 8K, 4K, 1440p, 1080p, 1080i, 720p, 720i, 576p, 576i, 480p
• Max Refresh Rate: 8K@60Hz, 4K@120Hz, 1080p@240Hz
• Support Video Colour: 12bit/14bit/16bit/36bit deep colour, RGB 8:8:8
• HDR support: HDR 10, Dolby Vision
• Support Audio Format: DTS, DTS-HD, Dolby-TrueHD, Dolby Atmos, PCM, LPCM
• Power Input: USB-C DC 5V
• Operating Temperature: 0C to 50C
• Dimension (L x W x H): 11.4 x 6.2 x 1.5cm

Package Contents

• 1x 4-Way HDMI Switch

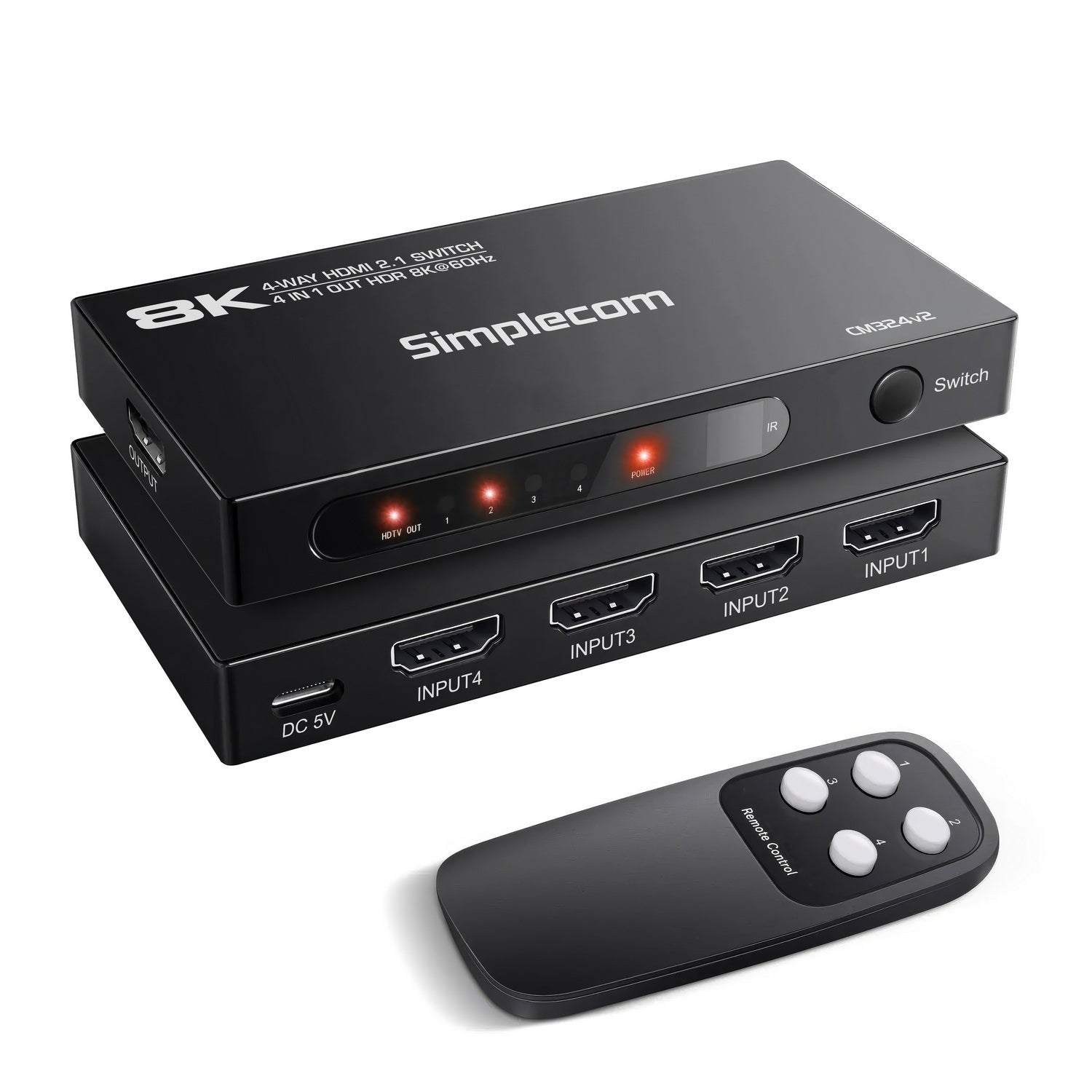

• 1x Remote Control
• 1x 5V1A Power Adapter
• 1x USB Power cable

Important Note

• For 8K@60Hz or 4K@120Hz support, Ultra High Speed HDMI 2.1 cable with 48Gbps bandwidth is required, cable length is limited to 3M
• This device is 4 IN 1 OUT one way only, and can not be used in reverse way
