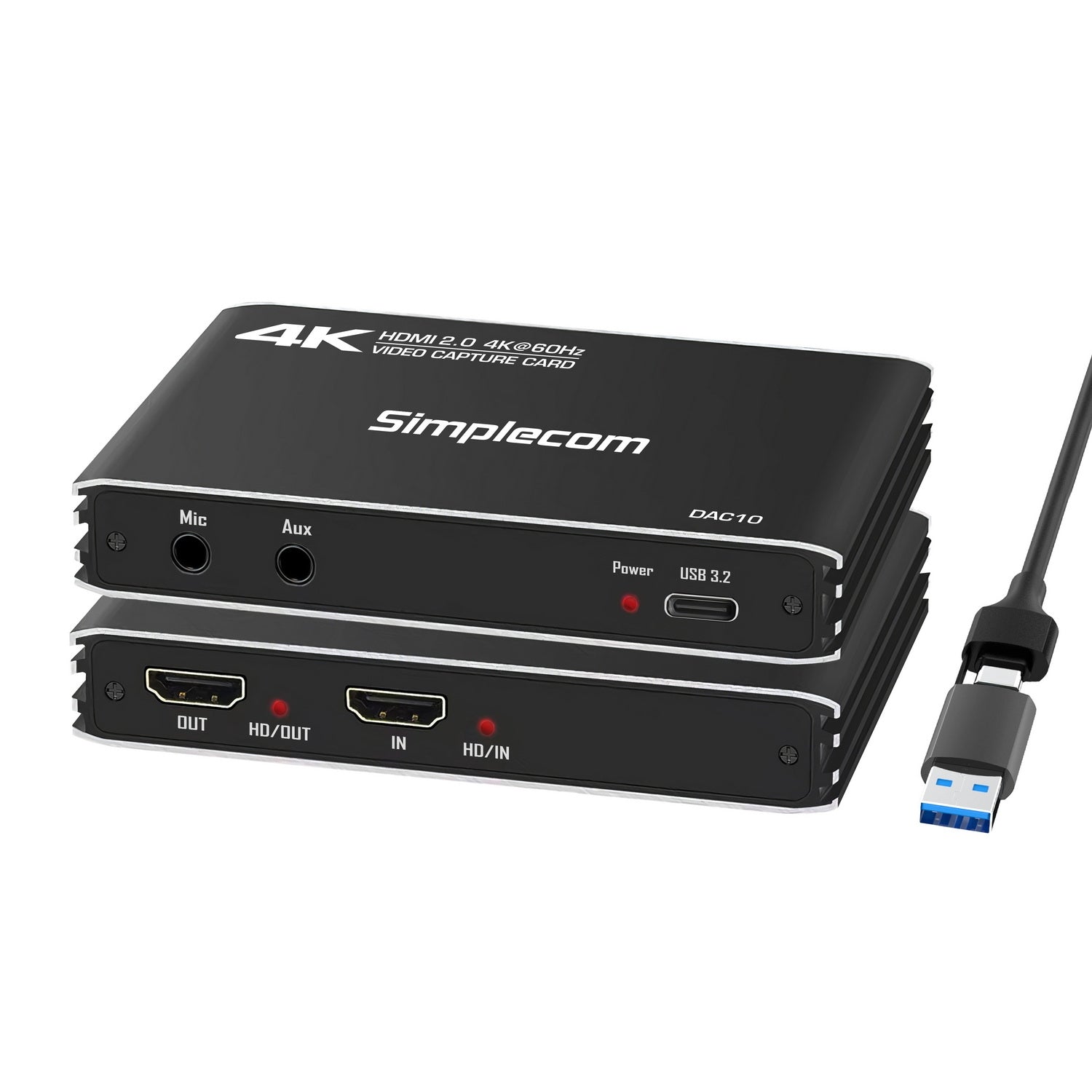

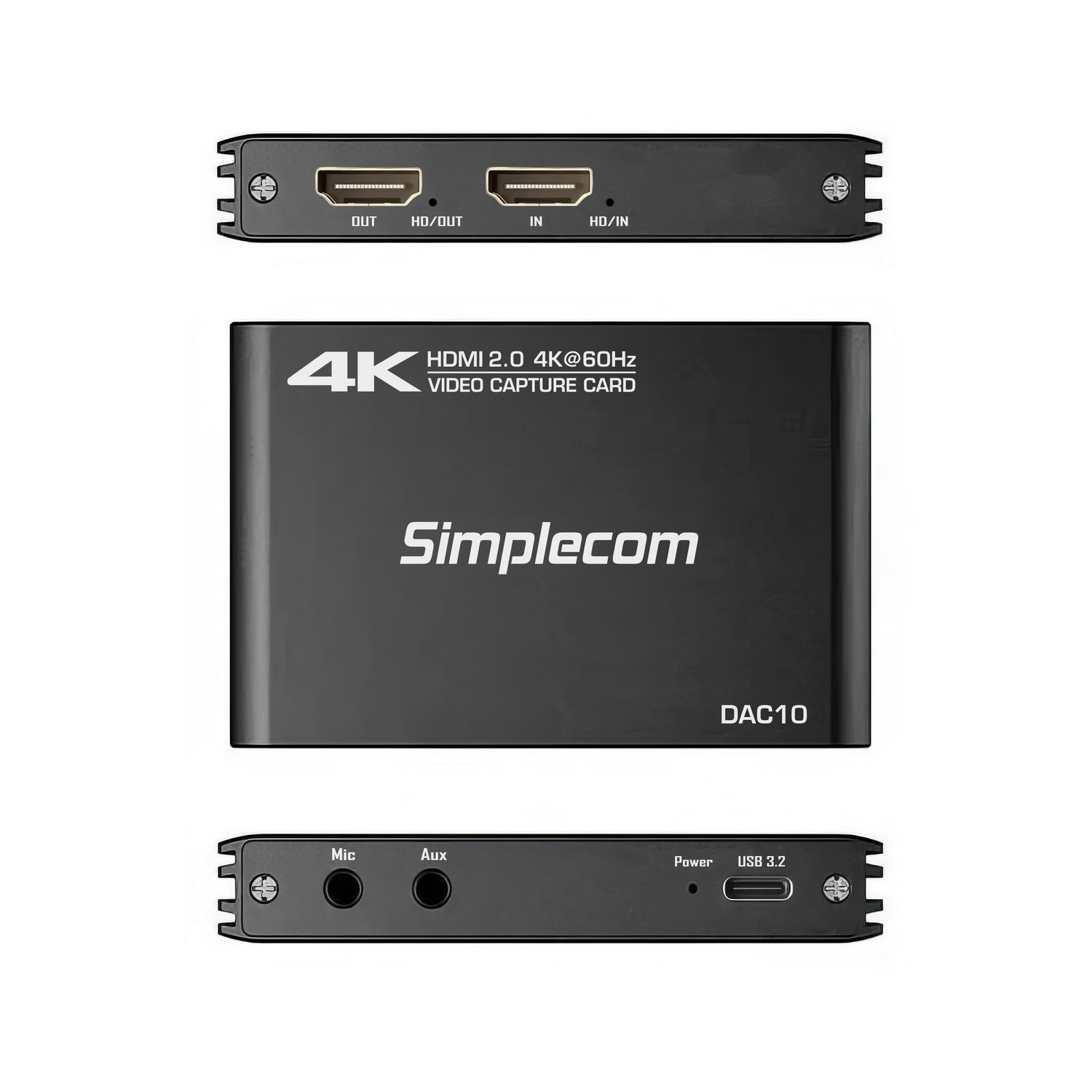

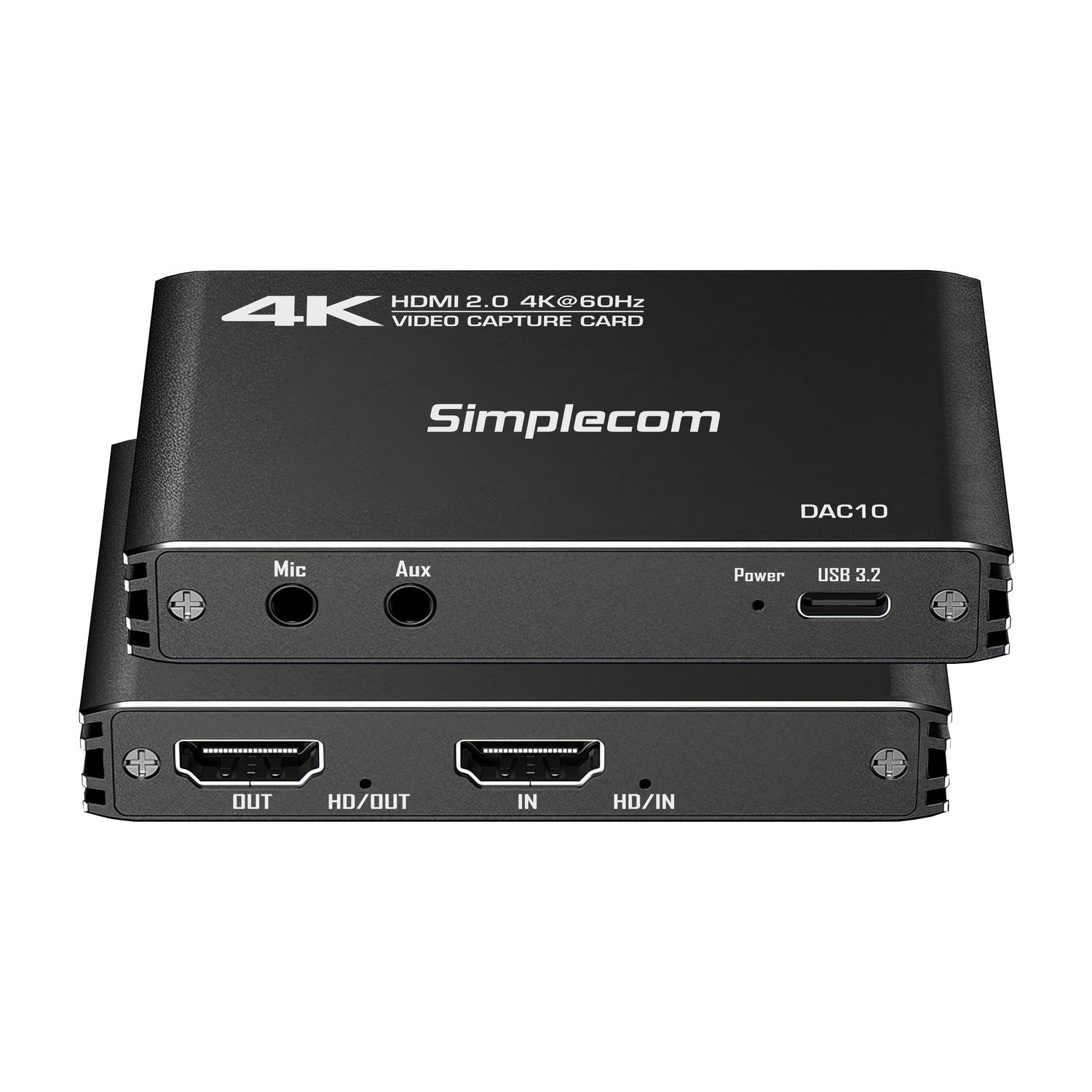

Simplecom DAC10 HDMI 2.0 to USB 4K@60hz Video Capture Card Stream and Record in 4K 60FPS

Simplecom DAC10 HDMI 2.0 to USB 4K@60hz Video Capture Card Stream and Record in 4K 60FPS

Capture, stream, and share your content in ultra-high definition with this 4K 60FPS HDMI to USB video capture card, designed for gamers, streamers, and content creators. Supporting HDMI 2.0 input and passthrough with HDR10 and Variable Refresh Rate (VRR), it delivers stunning video capture and streaming up to 4K@60Hz, 2K@144Hz, and 1080p@240Hz, perfect for gaming and high-quality recording.

Whether you're broadcasting gameplay, recording from a DSLR, or presenting in a video conference, this device delivers smooth, ultra-low latency performance and ensures flawless video quality for both recording and real-time streaming.

True 4K 60FPS Video Recording and Streaming
Capture or stream stunning video content at resolutions up to 4K/60FPS, 2K/144FPS, or 1080p/240PFS, ensuring ultra-smooth visuals, whether you're recording gameplay, live streaming, or connecting a high-res camera.

HDMI 2.0 Input and Passthrough
Enjoy passthrough with the same high resolutions, delivers lag-free, high-quality video up to 4K@60Hz, 2K@144Hz, and 1080p@240Hz, perfect for fast-paced gaming and professional recording.

3.5mm Microphone and Headphone Jack
Dedicated 3.5mm mic input let you plug in a microphone for live commentary, and a 3.5mm AUX output to monitor sound from source video in real time.

Variable Refresh Rate (VRR) Passthrough Support
VRR technology synchronizes frame rates between your display and signal source, eliminating lag, flicker, and screen tearing for a smooth and immersive gaming experience.

UVC Compliant Plug and Play
No drivers installation needed. Simply connect the capture device to your PCs USB port and start streaming or recording instantly. Fully compliant with UVC (USB Video Class) and UAC (USB Audio Class) standards.

Ultra-Low Latency
Say goodbye to delays and interruptions. Experience seamless, real-time video capture and streaming for smooth gameplay and recording sessions.

Designed for Gamers, Streamers, and Content Creators
Ideal for video recording, live streaming, video conferencing, and compatible with popular capture software and streaming platforms.

Features

• True 4K 60FPS HDMI 2.0 to USB video capture card
• Supports video capture or streaming up to 4K@60Hz, 2K@144hz, 1080p@240Hz
• Supports video passthrough up to 4K@60Hz, 2K@144hz, 1080p@240Hz
• 3.5mm microphone jack for commentary input whilerecording or streaming
• 3.5mm AUX output for monitoring audio from video source
• VRR (Variable Refresh Rate) technology ensures a smooth gaming experience
• USB 3.2 Gen 2 host interface supports data transfer rates up to 10Gbps
• USB-C and USB-A combo cable, convenient for use on different computers
• Compliant with UVC (USB Video Class) and UAC (USB Audio Class)
• Compatible with most mainstream capture software, such as VLC, OBS, etc.

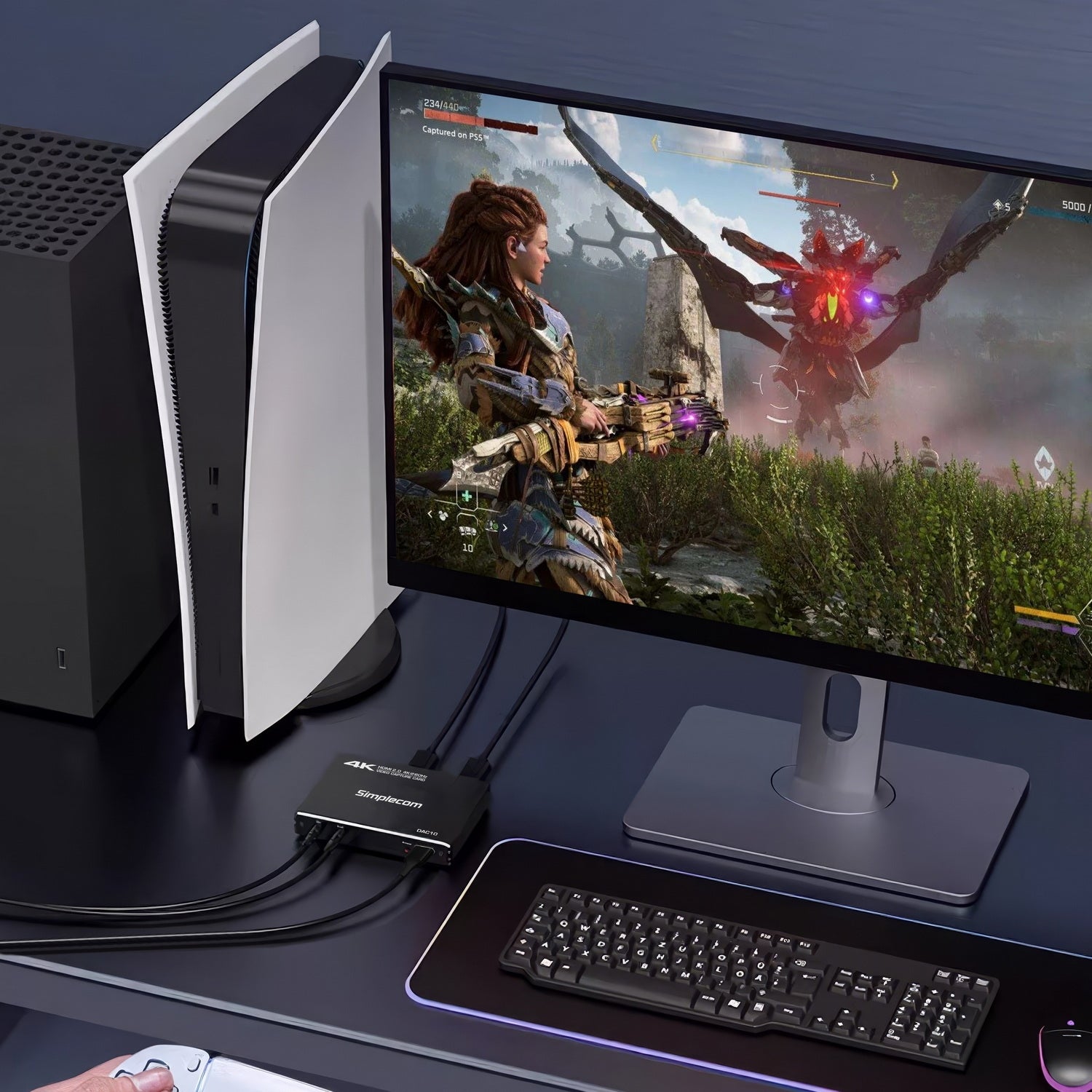

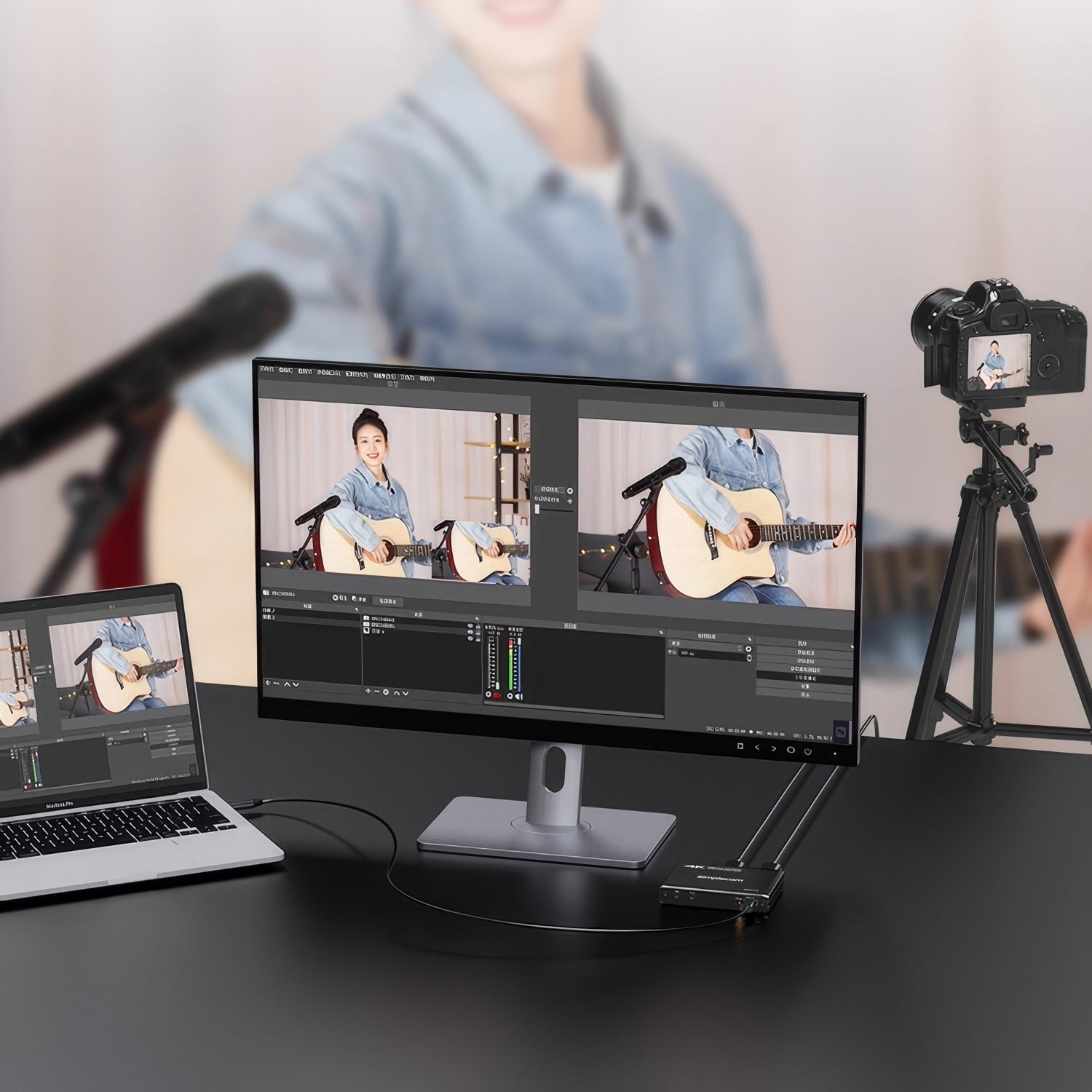

• Ideal for recording or streaming from game consoles, cameras, video players and more
• Powered by USB host, no external power supply required
• Plug and Play, no driver installation is required
• Durable and stylish aluminium alloy housing
• Works with Windows 10 or later, macOS 10.12 or later

Specifications

• Host Interface: USB-C USB 3.2 Gen 2 10Gbps (plug and play, UVC)
• HDMI Input: HDMI 2.0 (unencrypted), backward compatible
• HDMI Output (Passthrough): HDMI 2.0 (HDR10, VRR are supported)
• Mic Input: 3.5 mm Line In (3-Pole)
• AUX Output: 3.5 mm Line Out (3-Pole)
• Video Format Support: MJPEG, YUY2, NV12, I420
• Resolution and Frame Rate Support by Video Format:
  MJPEG: up to 4K@60Hz, 2K@144Hz, 1080p@240Hz
  YUY2 (4:2:2): up to 2K@60Hz, 1080p@60Hz
  NV12 (4:2:0): up to 4K@30Hz, 2K@60Hz, 1080p@120Hz
  i420 (4:2:0): up to 4K@30Hz, 2K@60Hz, 1080p@120Hz
• Audio Format Support: LPCM
• HDCP Support: HDCP2.3 Passthrough
• Operating temperature range: -10C to 55C
• Housing Material: Aluminium alloy
• Dimensions: 9.2 x 6.3 x 1.5CM (L x W x H)
• Weight: 81g approx.
• Compatible Recording Software: OBS, PotPlayer, VLC, vMix etc.
• Operating System Support: Windows 10 or later, macOS 10.12 or later

System Requirement

• Minimum PC Requirements for 4K@60Hz (MJPEG format recording):
  CPU: Intel Core i7 10th Gen or AMD Ryzen7 3000 series
  GPU: Nvidia GeForce GTX 1650 or equivalent Intel/AMD GPU
  RAM: Dual-channel 16GB
• Minimum PC Requirements for 4K@30Hz Recording:
  CPU: Intel Core i5 7th Gen or AMD Ryzen5 1000 series
  GPU: Nvidia GeForce GTX 1050Ti or equivalent Intel/AMD GPU
  RAM: Dual-channel 8GB

Package Contents

• 4K USB Video Capture Card
• USB-C to USB-C and USB-A combo cable
• HDMI Cable

Important Notes

• Please connect the device to a USB 3.0, USB 3.2 (5Gbps/10Gbps) port on your computer. USB 2.0 ports are not supported.
• To ensure optimal video capture quality, use the original USB-C cable included in the box, or a USB-C cable that supports 5Gbps or 10Gbps data transfer. Some USB-C cables only support USB 2.0 speeds and are not suitable for this device.
• For stable high-resolution video transmission, please use High-Speed HDMI cables with 18Gbps bandwidth. The HDMI cables should be shorter than 3 meters to ensure reliable connection.
• Video recording quality depends not only on resolution and frame rate, but also on the bitrate setting. To achieve good quality video at high resolutions, you'll need to increase the bitrate in software setting accordingly.
